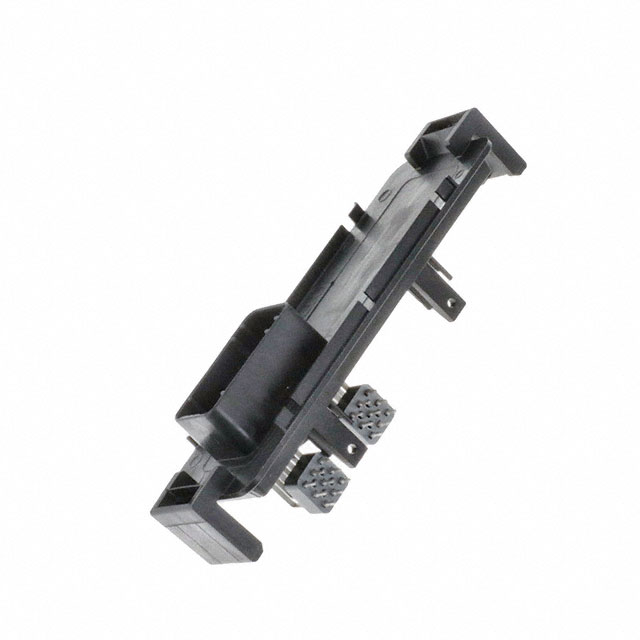

5810118033
ActiveCinch Connectivity Solutions Trompeter
CONN HEADER R/A 18POS
Deep-Dive with AI
Search across all available documentation for this part.
5810118033
ActiveCinch Connectivity Solutions Trompeter
CONN HEADER R/A 18POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5810118033 |
|---|---|
| Applications | Automotive |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Post | 3.2 mm |
| Contact Length - Post [x] | 0.126 in |
| Contact Material | Brass |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 10 A |
| Features | Ferrite Filter |
| Ingress Protection | IP69K, IP67 |
| Insulation Color | Black |
| Insulation Material | Polymer, Glass Filled |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 18 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.05 | |
| 10 | $ 16.99 | |||
| 100 | $ 13.30 | |||
| 500 | $ 11.36 | |||
Description
General part information
58101 Series
Connector Header Through Hole, Right Angle 18 position
Documents
Technical documentation and resources
No documents available
