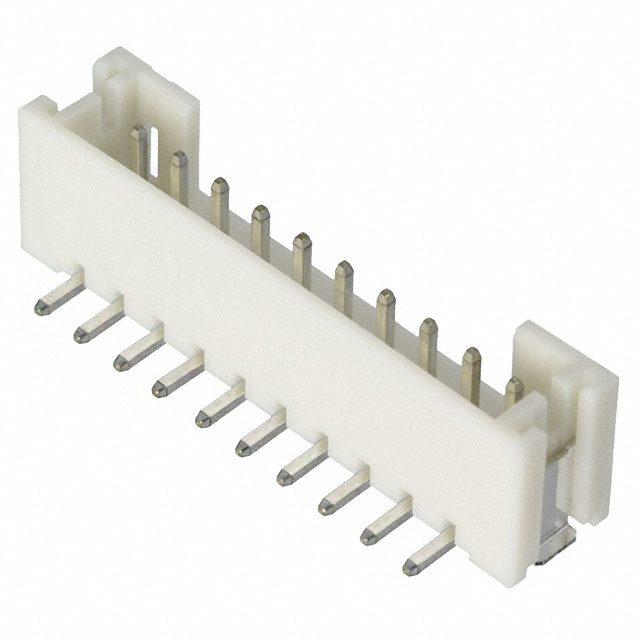

B10B-PH-SM4-TB

Active

JST Sales America Inc.

CONN HEADER SMD 10POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet JST Prefix Suffix Chart

B10B-PH-SM4-TB

Active

JST Sales America Inc.

CONN HEADER SMD 10POS 2MM

Deep-Dive with AI

DocumentsDatasheet JST Prefix Suffix Chart

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	B10B-PH-SM4-TB

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.13 in
Contact Length - Mating	3.3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Detent Lock
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.26 in
Insulation Height	6.6 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mated Stacking Heights	8.6 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 V

B10B-PH Series

Part	Material Flammability Rating	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Mated Stacking Heights	Contact Type	Current Rating (Amps)	Pitch - Mating [x]	Pitch - Mating [x]	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Style	Fastening Type	Voltage Rating	Termination	Overall Contact Length	Overall Contact Length	Number of Rows	Contact Material	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Insulation Material	Number of Positions	Contact Shape	Number of Positions Loaded	Pitch [x]	Pitch [x]	Convert From (Adapter End)	Features	Overall Contact Length [x]	Contact Length - Post [x]	Contact Length - Post [x]
JST Sales America Inc. B10B-PHDSS	UL94 V-0	Tin	0.114 in	2.9 mm	8.8 mm	Male Pin	3 A	0.079 in	2 mm	Through Hole	0.079 in	2 mm	Natural	Board to Cable/Wire	Detent Lock	250 VDC	Solder	0.291 in	7.4 mm	2	Copper Alloy	0.118 in	3 mm	6.5 mm	0.256 in	Header	-25 °C	85 °C	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	10	Square	All
JST Sales America Inc. B10B-PH-TW-S										Free Hanging (In-Line)										1											10			0.079 in	2 mm	Plug Male Pins
JST Sales America Inc. B10B-PH-SM4-TB	UL94 V-0	Tin	0.13 in	3.3 mm	8.6 mm	Male Pin	2 A	0.079 in	2 mm	Surface Mount			Natural	Board to Cable/Wire	Detent Lock	100 V	Solder			1	Copper Alloy			6.6 mm	0.26 in	Header	-25 °C	85 °C	Shrouded - 4 Wall	Nylon 6T Polyamide (PA6T)	10	Square	All				Solder Retention
JST Sales America Inc. B10B-PH-K-S	UL94 V-0	Tin	0.13 in	3.3 mm	8 mm	Male Pin	2 A	0.079 in	2 mm	Through Hole			Natural	Board to Cable/Wire	Detent Lock	100 V	Press-Fit Solder		8.45 mm	1	Brass			6 mm	0.236 in	Header	-25 °C	85 °C	Shrouded - 4 Wall	Polyamide (PA66) Nylon 6/6	10	Square	All					0.333 in	0.134 in	3.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.27
		10	$ 1.07
		100	$ 0.96
		500	$ 0.79
	Digi-Reel®	1	$ 1.27
		10	$ 1.07
		100	$ 0.96
		500	$ 0.79
	Tape & Reel (TR)	1000	$ 0.70
		2000	$ 0.66
		3000	$ 0.63
		5000	$ 0.61
		10000	$ 0.58

Description

General part information

B10B-PH Series

Connector Header Surface Mount 10 position 0.079" (2.00mm)
