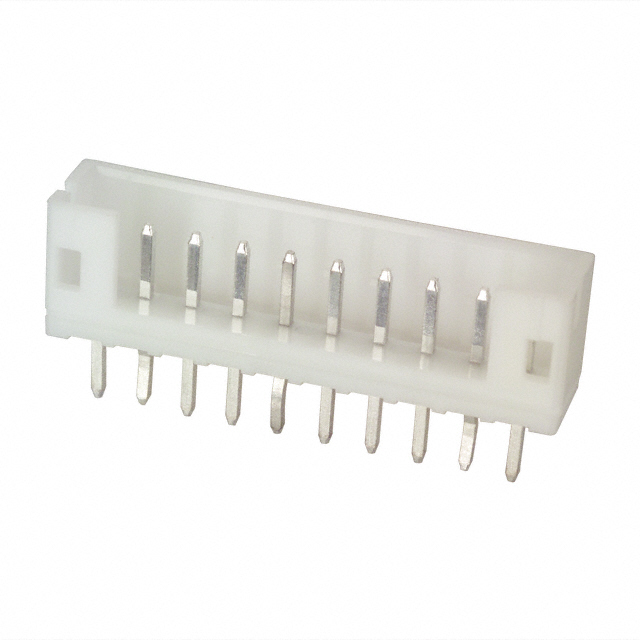

B10B-PH-K-S
ActiveJST Sales America Inc.
CONN HEADER VERT 10POS 2MM
Deep-Dive with AI
Search across all available documentation for this part.
B10B-PH-K-S
ActiveJST Sales America Inc.
CONN HEADER VERT 10POS 2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B10B-PH-K-S |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 0.13 in |
| Contact Length - Mating | 3.3 mm |
| Contact Length - Post [x] | 0.134 in |
| Contact Length - Post [x] | 3.4 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2 A |
| Fastening Type | Detent Lock |
| Insulation Color | Natural |
| Insulation Height | 6 mm |
| Insulation Height | 0.236 in |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mated Stacking Heights | 8 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Overall Contact Length | 8.45 mm |
| Overall Contact Length [x] | 0.333 in |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder, Press-Fit |
| Voltage Rating | 100 V |
B10B-PH Series
| Part | Material Flammability Rating | Contact Finish - Post | Contact Length - Mating | Contact Length - Mating | Mated Stacking Heights | Contact Type | Current Rating (Amps) | Pitch - Mating [x] | Pitch - Mating [x] | Mounting Type | Row Spacing - Mating | Row Spacing - Mating | Insulation Color | Style | Fastening Type | Voltage Rating | Termination | Overall Contact Length | Overall Contact Length | Number of Rows | Contact Material | Contact Length - Post | Contact Length - Post | Insulation Height | Insulation Height | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding | Insulation Material | Number of Positions | Contact Shape | Number of Positions Loaded | Pitch [x] | Pitch [x] | Convert From (Adapter End) | Features | Overall Contact Length [x] | Contact Length - Post [x] | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JST Sales America Inc. | UL94 V-0 | Tin | 0.114 in | 2.9 mm | 8.8 mm | Male Pin | 3 A | 0.079 in | 2 mm | Through Hole | 0.079 in | 2 mm | Natural | Board to Cable/Wire | Detent Lock | 250 VDC | Solder | 0.291 in | 7.4 mm | 2 | Copper Alloy | 0.118 in | 3 mm | 6.5 mm | 0.256 in | Header | -25 °C | 85 °C | Shrouded - 4 Wall | Glass Filled Nylon Polyamide (PA) | 10 | Square | All | |||||||
JST Sales America Inc. | Free Hanging (In-Line) | 1 | 10 | 0.079 in | 2 mm | Plug Male Pins | ||||||||||||||||||||||||||||||||||
JST Sales America Inc. | UL94 V-0 | Tin | 0.13 in | 3.3 mm | 8.6 mm | Male Pin | 2 A | 0.079 in | 2 mm | Surface Mount | Natural | Board to Cable/Wire | Detent Lock | 100 V | Solder | 1 | Copper Alloy | 6.6 mm | 0.26 in | Header | -25 °C | 85 °C | Shrouded - 4 Wall | Nylon 6T Polyamide (PA6T) | 10 | Square | All | Solder Retention | ||||||||||||
JST Sales America Inc. | UL94 V-0 | Tin | 0.13 in | 3.3 mm | 8 mm | Male Pin | 2 A | 0.079 in | 2 mm | Through Hole | Natural | Board to Cable/Wire | Detent Lock | 100 V | Press-Fit Solder | 8.45 mm | 1 | Brass | 6 mm | 0.236 in | Header | -25 °C | 85 °C | Shrouded - 4 Wall | Polyamide (PA66) Nylon 6/6 | 10 | Square | All | 0.333 in | 0.134 in | 3.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.33 | |
| 10 | $ 0.29 | |||
| 100 | $ 0.24 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.18 | |||
Description
General part information
B10B-PH Series
Connector Header Through Hole 10 position 0.079" (2.00mm)
Documents
Technical documentation and resources
