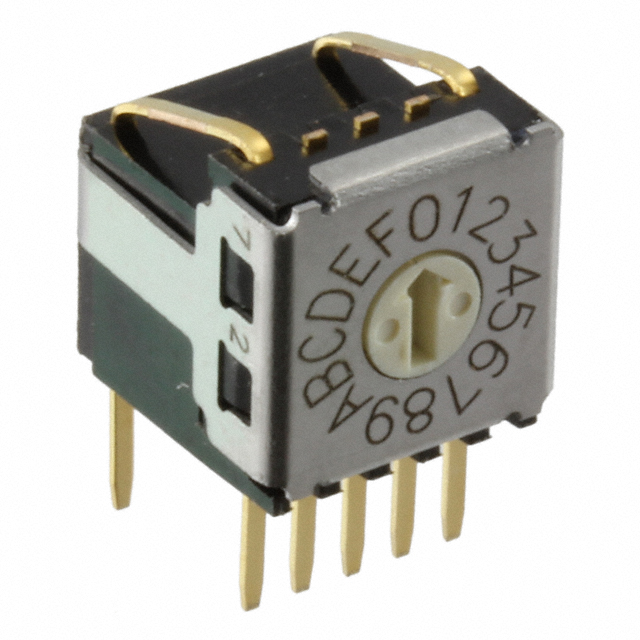

A6KV-164RF
ActiveOmron Electronics Inc-EMC Div
SWITCH ROTARY DIP HEX 0.025A 24V
Deep-Dive with AI
Search across all available documentation for this part.
A6KV-164RF
ActiveOmron Electronics Inc-EMC Div
SWITCH ROTARY DIP HEX 0.025A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A6KV-164RF |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Rotary for Tool |
| Circuit | Hexadecimal |
| Contact Finish | Gold |
| Current Rating (Amps) | 25 mA |
| Electrical Life | 20000 Steps |
| Height Above Board [z] | 0.303 in |
| Height Above Board [z] | 7.7 mm |
| Length [x] | 7.2 mm |
| Length [x] | 0.283 " |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 16 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Termination Style | PC Pin |
| Voltage Rating | 24 VDC |
| Washable | False |
A6KV Series
| Part | Actuator Level | Mounting Type | Number of Positions | Pitch [x] | Pitch | Pitch [x] | Current Rating (Amps) | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Voltage Rating | Length [x] | Length [x] | Termination Style | Washable | Actuator Type | Electrical Life | Height Above Board [z] | Height Above Board [z] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | Flush Recessed | Through Hole Right Angle | 10 | 0.1 in | Full | 2.54 mm | 25 mA | Gold | -30 ░C | 80 C | BCD | 24 VDC | 7.2 mm | 0.283 " | PC Pin | Rotary for Tool | 20000 Steps | 0.303 in | 7.7 mm | ||
Omron Electronics Inc-EMC Div | Raised | Through Hole Right Angle | 10 | 0.1 in | Full | 2.54 mm | 25 mA | Gold | -30 ░C | 80 C | BCD | 24 VDC | 7.2 mm | 0.283 " | PC Pin | Rotary with Shaft | 20000 Steps | 0.303 in | 7.7 mm | ||
Omron Electronics Inc-EMC Div | Raised | Through Hole Right Angle | 0.05 in | 1.27 mm | 25 mA | Gold | -30 ░C | 80 C | Hexadecimal | 24 VDC | 7.2 mm | 0.283 " | PC Pin | Rotary with Shaft | 20000 Steps | 0.303 in | 7.7 mm | 16 | |||
Omron Electronics Inc-EMC Div | Raised | Through Hole Right Angle | 10 | 0.05 in | 1.27 mm | 25 mA | Gold | -30 ░C | 80 C | BCD | 24 VDC | 7.2 mm | 0.283 " | PC Pin | Rotary with Shaft | 20000 Steps | 0.303 in | 7.7 mm | |||
Omron Electronics Inc-EMC Div | Flush Recessed | Through Hole Right Angle | 0.05 in | 1.27 mm | 25 mA | Gold | -30 ░C | 80 C | Hexadecimal | 24 VDC | 7.2 mm | 0.283 " | PC Pin | Rotary for Tool | 20000 Steps | 0.303 in | 7.7 mm | 16 | |||
Omron Electronics Inc-EMC Div | Flush Recessed | Through Hole Right Angle | 10 | 0.05 in | 1.27 mm | 25 mA | Gold | -30 ░C | 80 C | BCD | 24 VDC | 7.2 mm | 0.283 " | PC Pin | Rotary for Tool | 20000 Steps | 0.303 in | 7.7 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 7.62 | |
| 10 | $ 6.17 | |||
| 25 | $ 5.67 | |||
| 100 | $ 4.97 | |||
| 250 | $ 4.55 | |||
| 500 | $ 4.25 | |||
| 1000 | $ 3.97 | |||
| 2500 | $ 3.67 | |||
Description
General part information
A6KV Series
Dip Switch Hexadecimal 16 Position Through Hole, Right Angle Rotary for Tool Actuator 25mA 24VDC
