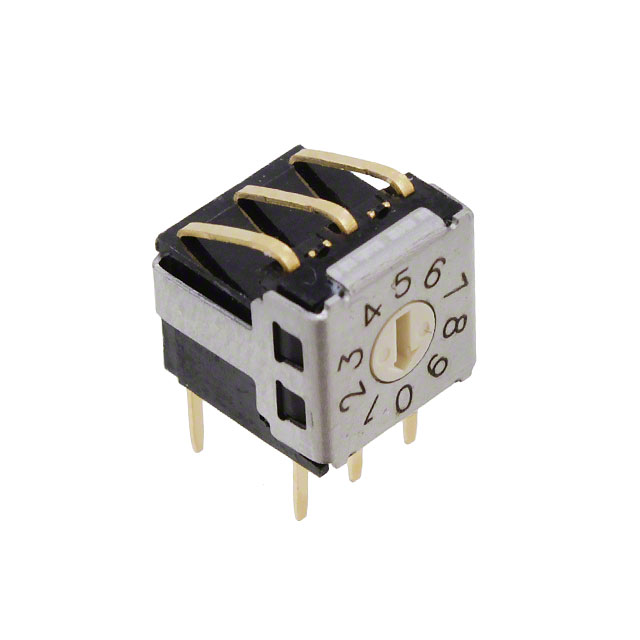

A6KV-102RF
ActiveOmron Electronics Inc-EMC Div
SWITCH ROTARY DIP BCD 0.025A 24V
Deep-Dive with AI
Search across all available documentation for this part.
A6KV-102RF
ActiveOmron Electronics Inc-EMC Div
SWITCH ROTARY DIP BCD 0.025A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A6KV-102RF |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Rotary for Tool |
| Circuit | BCD |
| Contact Finish | Gold |
| Current Rating (Amps) | 25 mA |
| Electrical Life | 20000 Steps |
| Height Above Board [z] | 0.303 in |
| Height Above Board [z] | 7.7 mm |
| Length [x] | 7.2 mm |
| Length [x] | 0.283 " |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 10 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | PC Pin |
| Voltage Rating | 24 VDC |
| Washable | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 8.77 | |
| 10 | $ 7.10 | |||
| 25 | $ 6.52 | |||
| 100 | $ 5.72 | |||
| 250 | $ 5.23 | |||
| 500 | $ 5.12 | |||
Description
General part information
A6KV Series
Dip Switch BCD 10 Position Through Hole, Right Angle Rotary for Tool Actuator 25mA 24VDC
