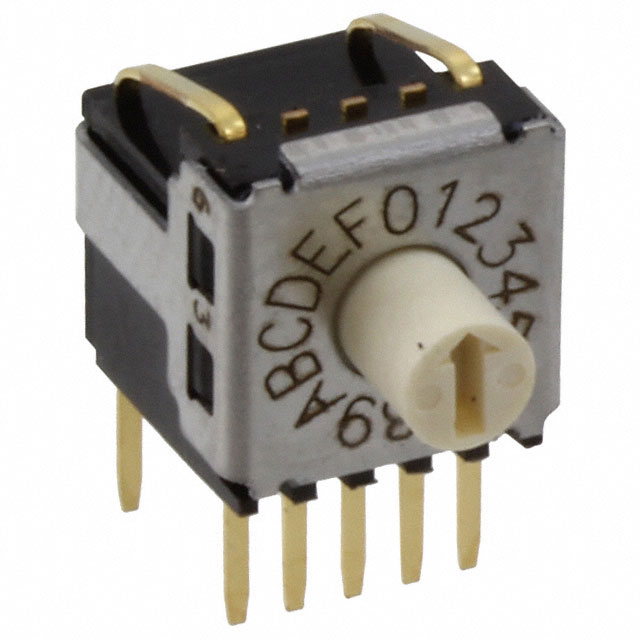

A6KV-164RS
ActiveOmron Electronics Inc-EMC Div
SWITCH ROTARY DIP HEX 0.025A 24V
Deep-Dive with AI
Search across all available documentation for this part.
A6KV-164RS
ActiveOmron Electronics Inc-EMC Div
SWITCH ROTARY DIP HEX 0.025A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A6KV-164RS |
|---|---|
| Actuator Level | Raised |
| Actuator Type | Rotary with Shaft |
| Circuit | Hexadecimal |
| Contact Finish | Gold |
| Current Rating (Amps) | 25 mA |
| Electrical Life | 20000 Steps |
| Height Above Board [z] | 0.303 in |
| Height Above Board [z] | 7.7 mm |
| Length [x] | 7.2 mm |
| Length [x] | 0.283 " |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 16 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Termination Style | PC Pin |
| Voltage Rating | 24 VDC |
| Washable | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 9.10 | |
| 10 | $ 8.68 | |||
| 60 | $ 7.36 | |||
| 120 | $ 6.82 | |||
| 300 | $ 6.20 | |||
| 540 | $ 5.75 | |||
| 1020 | $ 5.33 | |||
Description
General part information
A6KV Series
Dip Switch Hexadecimal 16 Position Through Hole, Right Angle Rotary with Shaft Actuator 25mA 24VDC
