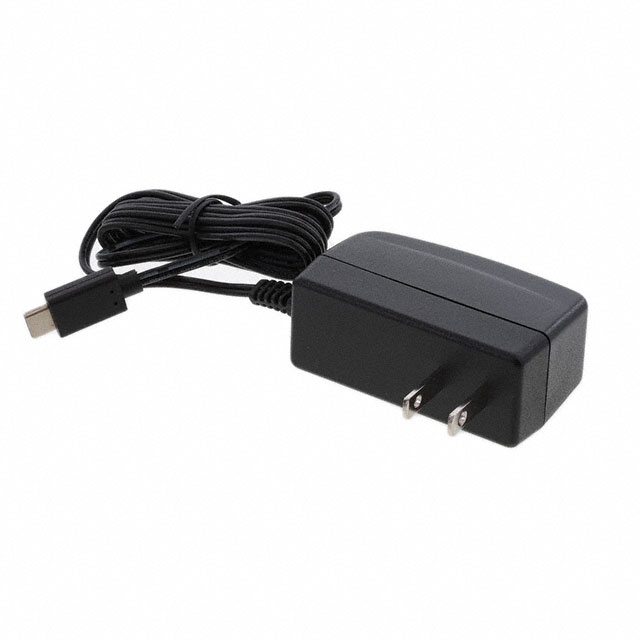

WR9HA2000USBC-F(R6B)
ActiveGlobTek, Inc.
AC/DC WALL MOUNT ADAPTER 5V 10W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WR9HA2000USBC-F(R6B)
ActiveGlobTek, Inc.
AC/DC WALL MOUNT ADAPTER 5V 10W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WR9HA2000USBC-F(R6B) |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | PSE, cULus, LPS, FCC, VCCI, UKRSepro, EAC, CB |
| Cord Length | 1.5 m |
| Cord Length | 59 in |
| Current - Output (Max) [Max] | 2 A |
| Efficiency | CoC Tier 2, Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| No Load Power Consumption [Max] | 75 mW |
| Output Connector | USB C |
| Power (Watts) | 10 W |
| Region Utilized | North America |
| Size / Dimension [x] | 2.72 " |
| Size / Dimension [x] | 69 mm |
| Size / Dimension [y] | 28.8 mm |
| Size / Dimension [y] | 1.13 in |
| Size / Dimension [z] | 57.3 mm |
| Size / Dimension [z] | 2.26 " |
| Standard Number | 60950-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 5 V |
WR9HA2000 Series
| Part | Input Type | Voltage - Output | Applications | Power (Watts) | Output Connector | Efficiency | Cord Length | Cord Length | Region Utilized | Approval Agency | Standard Number | Voltage - Input [Min] | Voltage - Input [Max] | Current - Output (Max) [Max] | Input Connector | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Form | No Load Power Consumption [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GlobTek, Inc. | Fixed Blade | 5 V | Household Appliances ITE (Commercial) Medical | 10 W | USB C | CoC Tier 2 Level VI | 60.2 in | 1.53 m | North America | CB cETLus EAC ETL LPS PSE RCM UKRSepro VCCI | 60335-1 60601-1-11 60601-1-2 62368-1 | 90 VAC | 264 VAC | 2 A | NEMA 1-15P | 2.72 " | 69 mm | 57.3 mm | 28.8 mm | 1.13 in | 2.26 " | Wall Mount (Class II) | |
GlobTek, Inc. | Fixed Blade | 5 V | ITE (Commercial) | 10 W | USB C | CoC Tier 2 Level VI | 59 in | 1.5 m | North America | CB cULus EAC FCC LPS PSE UKRSepro VCCI | 60950-1 | 90 VAC | 264 VAC | 2 A | NEMA 1-15P | 2.72 " | 69 mm | 57.3 mm | 28.8 mm | 1.13 in | 2.26 " | Wall Mount (Class II) | 75 mW |
GlobTek, Inc. | Fixed Blade | 5 V | Household Appliances ITE (Commercial) Medical | 10 W | USB Micro | Level VI | 60.2 in | 1.53 m | North America | CB cETLus EAC ETL LPS PSE RCM UKRSepro VCCI | 60335-1 60601-1-11 60601-1-2 62368-1 | 90 VAC | 264 VAC | 2 A | NEMA 1-15P | 2.72 " | 69 mm | 40.3 mm | 28.8 mm | 1.13 in | 1.59 " | Wall Mount (Class II) | |
GlobTek, Inc. | Fixed Blade | 5 V | ITE (Commercial) | 10 W | USB Micro | Level VI | 60.2 in | 1.53 m | North America | CB cULus EAC FCC LPS PSE UKRSepro VCCI | 60950-1 | 90 VAC | 264 VAC | 2 A | NEMA 1-15P | 2.72 " | 69 mm | 40.3 mm | 28.8 mm | 1.13 in | 1.59 " | Wall Mount (Class II) | 75 mW |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.43 | |
| 5 | $ 8.96 | |||
| 10 | $ 8.73 | |||
| 25 | $ 8.25 | |||
| 50 | $ 7.78 | |||
| 120 | $ 7.55 | |||
| 360 | $ 7.08 | |||
| 600 | $ 6.60 | |||
Description
General part information
WR9HA2000 Series
5V 10 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
