WR9HA2000MICB-MFR6B

Active

GlobTek, Inc.

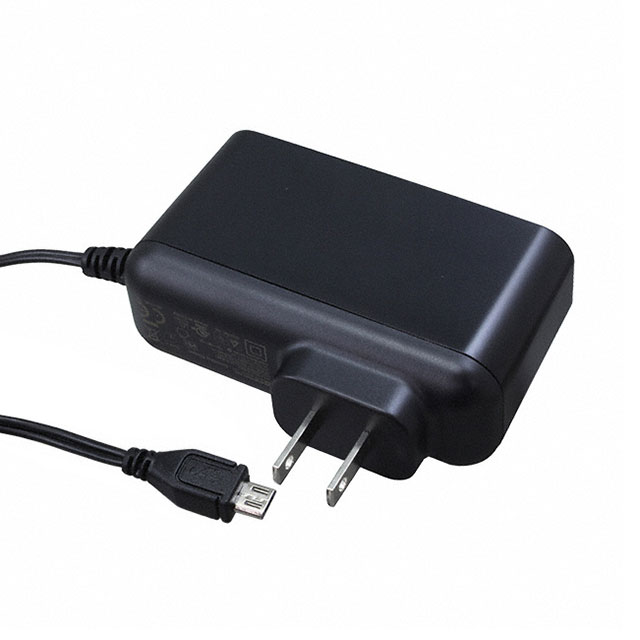

AC/DC WALL MOUNT ADAPTER 5V 10W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 5V 10W

Technical Specifications

Parameters and characteristics for this part

Specification	WR9HA2000MICB-MFR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	RCM, LPS, VCCI, UKRSepro, ETL, cETLus, EAC, CB, PSE
Cord Length	60.2 in
Cord Length	1.53 m
Current - Output (Max) [Max]	2 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
Output Connector	USB Micro
Power (Watts)	10 W
Region Utilized	North America
Size / Dimension [x]	2.72 "
Size / Dimension [x]	69 mm
Size / Dimension [y]	1.13 in
Size / Dimension [y]	28.8 mm
Size / Dimension [z]	1.59 "
Size / Dimension [z]	40.3 mm
Standard Number	60335-1, 60601-1-11, 60601-1-2, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V

Part	Input Type	Voltage - Output	Applications	Power (Watts)	Output Connector	Efficiency	Cord Length	Cord Length	Region Utilized	Approval Agency	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output (Max) [Max]	Input Connector	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Form	No Load Power Consumption [Max]
GlobTek, Inc. WR9HA2000USBCFMEDR6W	Fixed Blade	5 V	Household Appliances ITE (Commercial) Medical	10 W	USB C	CoC Tier 2 Level VI	60.2 in	1.53 m	North America	CB cETLus EAC ETL LPS PSE RCM UKRSepro VCCI	60335-1 60601-1-11 60601-1-2 62368-1	90 VAC	264 VAC	2 A	NEMA 1-15P	2.72 "	69 mm	57.3 mm	28.8 mm	1.13 in	2.26 "	Wall Mount (Class II)
GlobTek, Inc. WR9HA2000USBC-F(R6B)	Fixed Blade	5 V	ITE (Commercial)	10 W	USB C	CoC Tier 2 Level VI	59 in	1.5 m	North America	CB cULus EAC FCC LPS PSE UKRSepro VCCI	60950-1	90 VAC	264 VAC	2 A	NEMA 1-15P	2.72 "	69 mm	57.3 mm	28.8 mm	1.13 in	2.26 "	Wall Mount (Class II)	75 mW
GlobTek, Inc. WR9HA2000MICB-MFR6B	Fixed Blade	5 V	Household Appliances ITE (Commercial) Medical	10 W	USB Micro	Level VI	60.2 in	1.53 m	North America	CB cETLus EAC ETL LPS PSE RCM UKRSepro VCCI	60335-1 60601-1-11 60601-1-2 62368-1	90 VAC	264 VAC	2 A	NEMA 1-15P	2.72 "	69 mm	40.3 mm	28.8 mm	1.13 in	1.59 "	Wall Mount (Class II)
GlobTek, Inc. WR9HA2000UUSB-F(R6B)	Fixed Blade	5 V	ITE (Commercial)	10 W	USB Micro	Level VI	60.2 in	1.53 m	North America	CB cULus EAC FCC LPS PSE UKRSepro VCCI	60950-1	90 VAC	264 VAC	2 A	NEMA 1-15P	2.72 "	69 mm	40.3 mm	28.8 mm	1.13 in	1.59 "	Wall Mount (Class II)	75 mW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5V 10 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input

Technical documentation and resources
