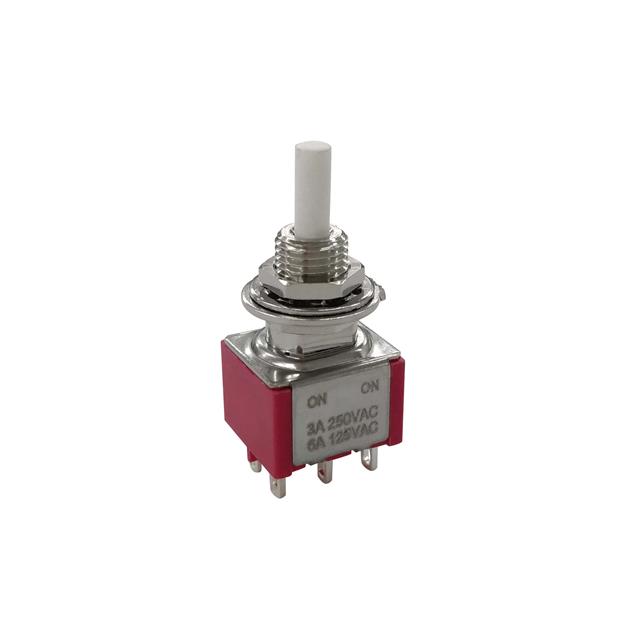

SW-PB8-BA00A1QE-3

Active

Adam Tech

ALTERNATE ACTING PUSHBUTTON SWIT

Search across all available documentation for this part.

Active

Adam Tech

ALTERNATE ACTING PUSHBUTTON SWIT

Technical Specifications

Parameters and characteristics for this part

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Color - Actuator/Cap	Termination Style	Circuit	Mounting Type	Voltage Rating - AC	Actuator Type	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Type	Actuator Marking	Ingress Protection	Current Rating (Amps)
Adam Tech SW-PB8-BE222QE-1	12.7 mm	15.24 mm	Black	PC Pin	DPDT	Panel Mount Snap-In	120 V	Button Square	38 V	-30 ░C	85 °C	On-Mom	Standard	No Marking
Adam Tech SW-PB8-AA00A2GE-2				PC Pin	SPDT	Panel Mount Rear	120 V	Round Plunger	38 V	-30 ░C	85 °C	On-Mom	Standard	No Marking	IP68 - Dust Tight Waterproof
Adam Tech SW-PB8-BA00A1QE-3				Solder Lug	DPDT	Panel Mount Rear	125 V	Round Plunger	28 V	-30 ░C	85 °C	On-On	Standard	No Marking		6 A
