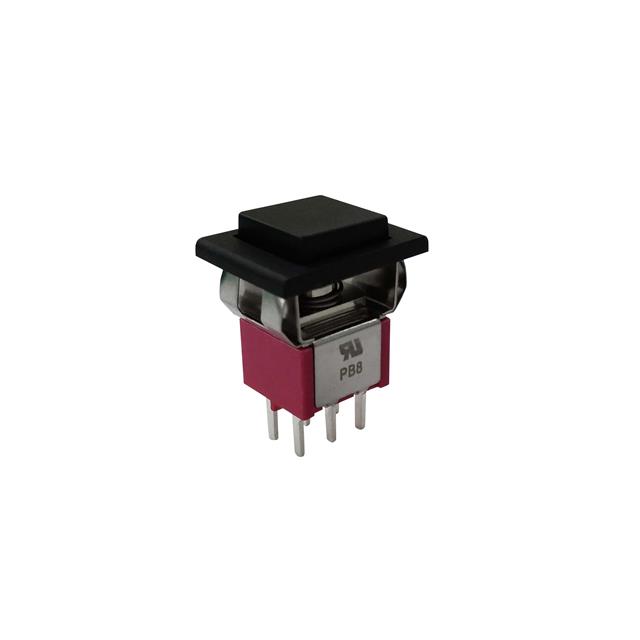

SW-PB8-BE222QE-1
ActiveAdam Tech
SNAP-ACTING PUSHBUTTON SWITCH, B
Deep-Dive with AI
Search across all available documentation for this part.
SW-PB8-BE222QE-1
ActiveAdam Tech
SNAP-ACTING PUSHBUTTON SWITCH, B
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SW-PB8-BE222QE-1 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Square |
| Circuit | DPDT |
| Color - Actuator/Cap | Black |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [x] | 15.24 mm |
| Panel Cutout Dimensions [y] | 12.7 mm |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Type | Standard |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 38 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 3.55 | |
| 10 | $ 3.06 | |||
| 25 | $ 2.89 | |||
| 50 | $ 2.76 | |||
| 100 | $ 2.69 | |||
Description
General part information
SW-PB8 Series
Pushbutton Switch DPDT Standard Panel Mount, Snap-In
