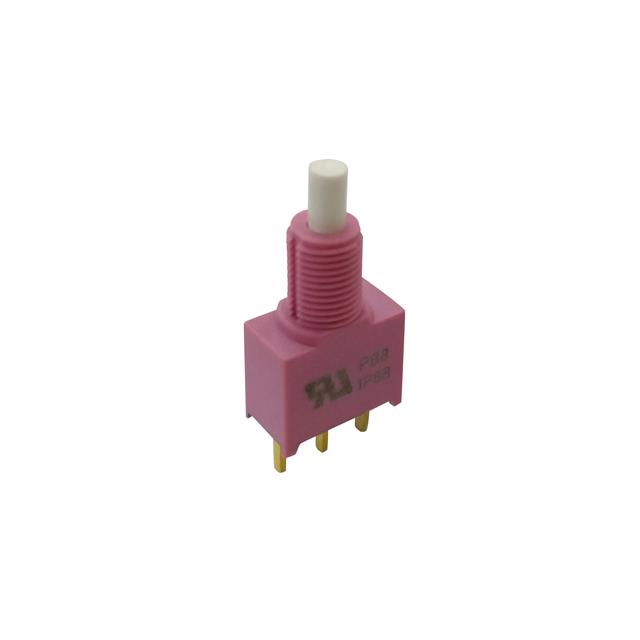

SW-PB8-AA00A2GE-2

Active

Adam Tech

SEALED SNAP-ACTING PUSHBUTTON SW

Search across all available documentation for this part.

Active

Adam Tech

SEALED SNAP-ACTING PUSHBUTTON SW

Technical Specifications

Parameters and characteristics for this part

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Color - Actuator/Cap	Termination Style	Circuit	Mounting Type	Voltage Rating - AC	Actuator Type	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Type	Actuator Marking	Ingress Protection	Current Rating (Amps)
Adam Tech SW-PB8-BE222QE-1	12.7 mm	15.24 mm	Black	PC Pin	DPDT	Panel Mount Snap-In	120 V	Button Square	38 V	-30 ░C	85 °C	On-Mom	Standard	No Marking
Adam Tech SW-PB8-AA00A2GE-2				PC Pin	SPDT	Panel Mount Rear	120 V	Round Plunger	38 V	-30 ░C	85 °C	On-Mom	Standard	No Marking	IP68 - Dust Tight Waterproof
Adam Tech SW-PB8-BA00A1QE-3				Solder Lug	DPDT	Panel Mount Rear	125 V	Round Plunger	28 V	-30 ░C	85 °C	On-On	Standard	No Marking		6 A
