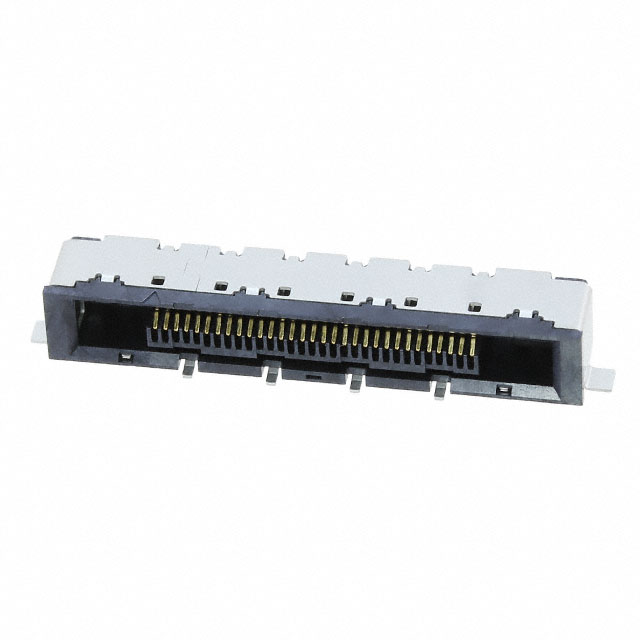

FX16-31S-0.5SH(30)

LTB

Hirose Electric USA, Inc.

CONN MULTI-PURP RCPT 31P R/A SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FX16-31S-0.5SH(30)

LTB

Hirose Electric USA, Inc.

CONN MULTI-PURP RCPT 31P R/A SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FX16-31S-0.5SH(30)

Connector Style	Receptacle
Connector Type	Multi-Purpose
Contact Finish	Gold
Features	Solder Retention
Mounting Type	Surface Mount, Right Angle
Number of Positions	31
Termination	Solder

FX16 Series

Part	Connector Style	Connector Type	Features	Contact Finish	Mounting Type	Termination	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Connector/Contact Type	Voltage Rating	Material Flammability Rating	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Note	Housing Color	Number of Rows	Wire Gauge [Max]	Wire Gauge [Min]	Flat Flex Type	Current Rating (Amps)	Locking Feature	For Use With/Related Products	Accessory Type	Contact Material
Hirose Electric USA, Inc. FX16-21P-0.5SDL	Plug	Multi-Purpose	Locking Ramp	Gold	Free Hanging (In-Line) Right Angle	Solder	21
Hirose Electric USA, Inc. FX16M2-41S-0.5SH(30)	Receptacle	Multi-Purpose	Solder Retention	Gold	Surface Mount Right Angle	Solder	41
Hirose Electric USA, Inc. FX16M2-41S-0.5SV	Receptacle	Multi-Purpose	Solder Retention	Tin	Surface Mount	Solder	41	39.4 Áin	1 Ám
Hirose Electric USA, Inc. FX16F-21P-HC			EMI Shielded		Free Hanging (In-Line)		21			0.5 mm	0.02 in	Plug
Hirose Electric USA, Inc. FX16R-30P-C		Housing for Female Contacts	Board Guide							0.5 mm	0.02 in		60 VDC	UL94 V-0	Liquid Crystal Polymer (LCP)	85 °C	-55 °C	Contacts Not Included	Black	1	30 AWG	27.5 AWG	FFC FPC	0.5 A	Latch Lock
Hirose Electric USA, Inc. FX16M2-51S-0.5SH	Receptacle	Multi-Purpose	Solder Retention	Gold	Surface Mount Right Angle	Solder	51	11.8 Áin	0.3 Ám
Hirose Electric USA, Inc. FX16-21P-GNDL																										FX16 Series	Ground Plate
Hirose Electric USA, Inc. FX16-21S-0.5SH(30)	Receptacle	Multi-Purpose	Solder Retention	Gold	Surface Mount Right Angle	Solder	21
Hirose Electric USA, Inc. FX16-31S-0.5SH(30)	Receptacle	Multi-Purpose	Solder Retention	Gold	Surface Mount Right Angle	Solder	31
Hirose Electric USA, Inc. FX16M2-51P-HC			EMI Shielded		Free Hanging (In-Line)		51			0.5 mm	0.02 in	Plug		UL94 V-0	Polybutylene Terephthalate (PBT)				Black				FFC					Phosphor Bronze

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.07
		10	$ 3.69
		25	$ 3.50
		50	$ 3.41
	Digi-Reel®	1	$ 4.07
		10	$ 3.69
		25	$ 3.50
		50	$ 3.41
	Tape & Reel (TR)	100	$ 3.25

Description

General part information

FX16 Series

31 Position Multi-Purpose Receptacle Connector Solder Surface Mount, Right Angle

Documents

Technical documentation and resources
