FX16-21P-0.5SDL
ActiveHirose Electric USA, Inc.

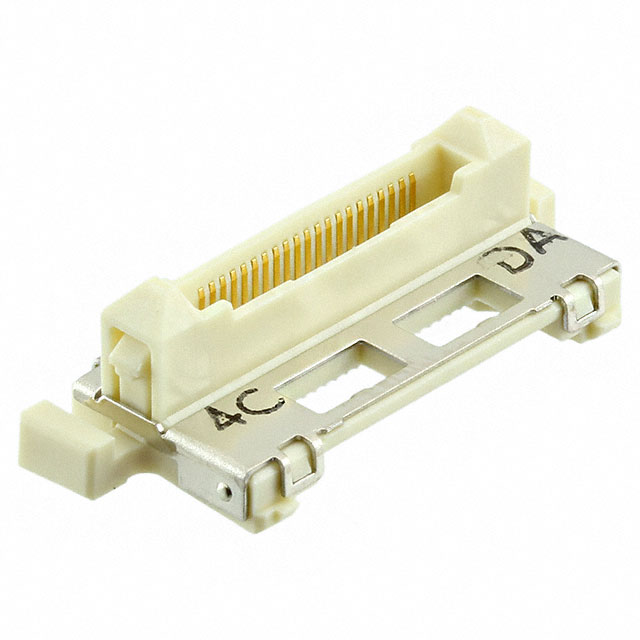

CONN MULTI-PURP PLUG 21P SLD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FX16-21P-0.5SDL
ActiveHirose Electric USA, Inc.
CONN MULTI-PURP PLUG 21P SLD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FX16-21P-0.5SDL |
|---|---|
| Connector Style | Plug |
| Connector Type | Multi-Purpose |
| Contact Finish | Gold |
| Features | Locking Ramp |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Positions | 21 |
| Termination | Solder |
FX16 Series
| Part | Connector Style | Connector Type | Features | Contact Finish | Mounting Type | Termination | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Connector/Contact Type | Voltage Rating | Material Flammability Rating | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Note | Housing Color | Number of Rows | Wire Gauge [Max] | Wire Gauge [Min] | Flat Flex Type | Current Rating (Amps) | Locking Feature | For Use With/Related Products | Accessory Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | Plug | Multi-Purpose | Locking Ramp | Gold | Free Hanging (In-Line) Right Angle | Solder | 21 | |||||||||||||||||||||
Hirose Electric USA, Inc. | Receptacle | Multi-Purpose | Solder Retention | Gold | Surface Mount Right Angle | Solder | 41 | |||||||||||||||||||||
Hirose Electric USA, Inc. | Receptacle | Multi-Purpose | Solder Retention | Tin | Surface Mount | Solder | 41 | 39.4 Áin | 1 Ám | |||||||||||||||||||
Hirose Electric USA, Inc. | EMI Shielded | Free Hanging (In-Line) | 21 | 0.5 mm | 0.02 in | Plug | ||||||||||||||||||||||
Hirose Electric USA, Inc. | Housing for Female Contacts | Board Guide | 0.5 mm | 0.02 in | 60 VDC | UL94 V-0 | Liquid Crystal Polymer (LCP) | 85 °C | -55 °C | Contacts Not Included | Black | 1 | 30 AWG | 27.5 AWG | FFC FPC | 0.5 A | Latch Lock | |||||||||||
Hirose Electric USA, Inc. | Receptacle | Multi-Purpose | Solder Retention | Gold | Surface Mount Right Angle | Solder | 51 | 11.8 Áin | 0.3 Ám | |||||||||||||||||||
Hirose Electric USA, Inc. | FX16 Series | Ground Plate | ||||||||||||||||||||||||||
Hirose Electric USA, Inc. | Receptacle | Multi-Purpose | Solder Retention | Gold | Surface Mount Right Angle | Solder | 21 | |||||||||||||||||||||
Hirose Electric USA, Inc. | Receptacle | Multi-Purpose | Solder Retention | Gold | Surface Mount Right Angle | Solder | 31 | |||||||||||||||||||||
Hirose Electric USA, Inc. | EMI Shielded | Free Hanging (In-Line) | 51 | 0.5 mm | 0.02 in | Plug | UL94 V-0 | Polybutylene Terephthalate (PBT) | Black | FFC | Phosphor Bronze |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.27 | |
| 10 | $ 1.73 | |||
| 25 | $ 1.56 | |||
| 40 | $ 1.48 | |||
| 80 | $ 1.37 | |||
| 230 | $ 1.22 | |||
| 440 | $ 1.14 | |||
| 945 | $ 1.05 | |||
| 2400 | $ 0.96 | |||
Description
General part information
FX16 Series
21 Position Multi-Purpose Plug Connector Solder Free Hanging (In-Line), Right Angle
