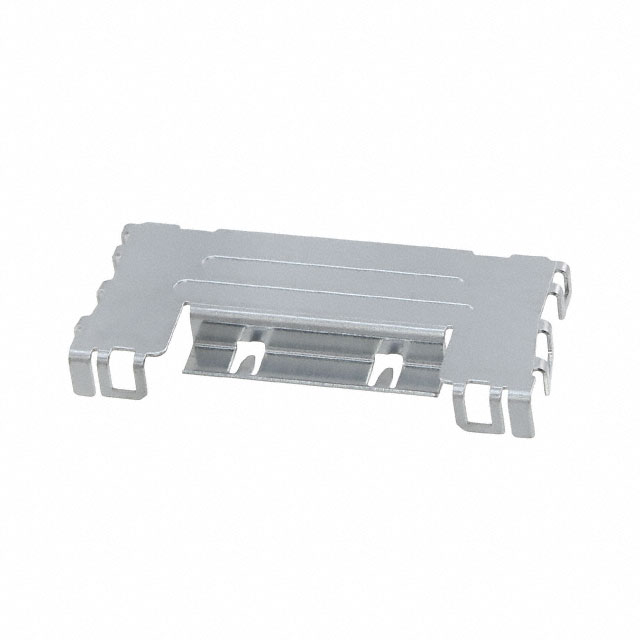

FX16-21P-GNDL

Active

Hirose Electric USA, Inc.

CONN GND PLATE FOR FX16 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FX16-21P-GNDL

Active

Hirose Electric USA, Inc.

CONN GND PLATE FOR FX16 SERIES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FX16-21P-GNDL

Accessory Type	Ground Plate
For Use With/Related Products	FX16 Series

FX16 Series

Part	Connector Style	Connector Type	Features	Contact Finish	Mounting Type	Termination	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Connector/Contact Type	Voltage Rating	Material Flammability Rating	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Note	Housing Color	Number of Rows	Wire Gauge [Max]	Wire Gauge [Min]	Flat Flex Type	Current Rating (Amps)	Locking Feature	For Use With/Related Products	Accessory Type	Contact Material
Hirose Electric USA, Inc. FX16-21P-0.5SDL	Plug	Multi-Purpose	Locking Ramp	Gold	Free Hanging (In-Line) Right Angle	Solder	21
Hirose Electric USA, Inc. FX16M2-41S-0.5SH(30)	Receptacle	Multi-Purpose	Solder Retention	Gold	Surface Mount Right Angle	Solder	41
Hirose Electric USA, Inc. FX16M2-41S-0.5SV	Receptacle	Multi-Purpose	Solder Retention	Tin	Surface Mount	Solder	41	39.4 Áin	1 Ám
Hirose Electric USA, Inc. FX16F-21P-HC			EMI Shielded		Free Hanging (In-Line)		21			0.5 mm	0.02 in	Plug
Hirose Electric USA, Inc. FX16R-30P-C		Housing for Female Contacts	Board Guide							0.5 mm	0.02 in		60 VDC	UL94 V-0	Liquid Crystal Polymer (LCP)	85 °C	-55 °C	Contacts Not Included	Black	1	30 AWG	27.5 AWG	FFC FPC	0.5 A	Latch Lock
Hirose Electric USA, Inc. FX16M2-51S-0.5SH	Receptacle	Multi-Purpose	Solder Retention	Gold	Surface Mount Right Angle	Solder	51	11.8 Áin	0.3 Ám
Hirose Electric USA, Inc. FX16-21P-GNDL																										FX16 Series	Ground Plate
Hirose Electric USA, Inc. FX16-21S-0.5SH(30)	Receptacle	Multi-Purpose	Solder Retention	Gold	Surface Mount Right Angle	Solder	21
Hirose Electric USA, Inc. FX16-31S-0.5SH(30)	Receptacle	Multi-Purpose	Solder Retention	Gold	Surface Mount Right Angle	Solder	31
Hirose Electric USA, Inc. FX16M2-51P-HC			EMI Shielded		Free Hanging (In-Line)		51			0.5 mm	0.02 in	Plug		UL94 V-0	Polybutylene Terephthalate (PBT)				Black				FFC					Phosphor Bronze

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 0.23

Description

General part information

FX16 Series

Connector Ground Plate For FX16 Series
