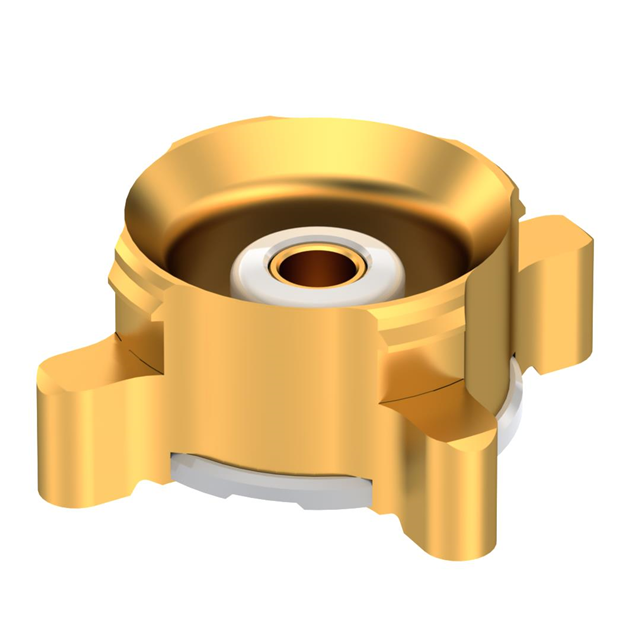

R223424800
ActiveRadiall USA, Inc.
MMBX F F SMT TR750
Deep-Dive with AI
Search across all available documentation for this part.
R223424800
ActiveRadiall USA, Inc.
MMBX F F SMT TR750
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R223424800 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | MMBX |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 12.4 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 330 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.88 | |
| 10 | $ 7.13 | |||
| 25 | $ 6.73 | |||
| 50 | $ 6.57 | |||
| 100 | $ 6.24 | |||
| 250 | $ 5.58 | |||
| Digi-Reel® | 1 | $ 7.88 | ||
| 10 | $ 7.13 | |||
| 25 | $ 6.73 | |||
| 50 | $ 6.57 | |||
| 100 | $ 6.24 | |||
| 250 | $ 5.58 | |||
| Tape & Reel (TR) | 750 | $ 4.93 | ||
| 1500 | $ 4.50 | |||
Description
General part information
R22342 Series
MMBX Connector Jack, Female Socket 50 Ohms Surface Mount Solder
Documents
Technical documentation and resources
No documents available
