R223423000

Active

Radiall USA, Inc.

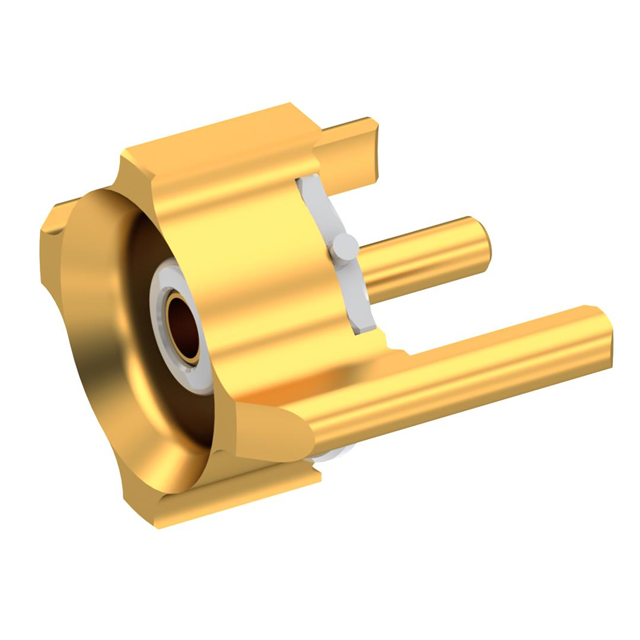

RF CONNECTOR, FEMALE, BOARD MOUNT, SURFACE MOUNT TERMINAL, RECEPTACLE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF CONNECTOR, FEMALE, BOARD MOUNT, SURFACE MOUNT TERMINAL, RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	R223423000

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MMBX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE), Liquid Crystal Polymer (LCP)
Fastening Type	Snap-On
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	330 VDC

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Connector Type	Impedance	Body Finish	Number of Ports	Body Material	Shield Termination	Dielectric Material	Fastening Type	Voltage Rating	Connector Style	Contact Termination	Center Contact Plating	Housing Color	Frequency - Max [Max]
Radiall USA, Inc. R223423000	Through Hole	155 °C	-55 °C	Brass	Female Socket Jack	50 Ohms	Gold	1	Brass	Solder	Liquid Crystal Polymer (LCP) Polytetrafluoroethylene (PTFE)	Snap-On	330 VDC	MMBX	Solder	Gold	Gold	12.4 GHz
Radiall USA, Inc. R223424000	Surface Mount	155 °C	-55 °C	Brass	Female Socket Jack	50 Ohms	Gold	1	Brass	Solder	Liquid Crystal Polymer (LCP)	Snap-On	330 VDC	MMBX	Solder	Gold	Gold	12.4 GHz
Radiall USA, Inc. R223424000W	Surface Mount	155 °C	-55 °C	Brass	Female Socket Jack	50 Ohms	Gold	1	Brass	Solder	Liquid Crystal Polymer (LCP)	Snap-On	330 VDC	MMBX	Solder	Gold	Gold	12.4 GHz
Radiall USA, Inc. R223424800	Surface Mount	155 °C	-55 °C	Brass	Female Socket Jack	50 Ohms	Gold	1	Brass	Solder	Liquid Crystal Polymer (LCP)	Snap-On	330 VDC	MMBX	Solder	Gold	Gold	12.4 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 9.55

General part information

MMBX Connector Jack, Female Socket 50 Ohms Through Hole Solder
