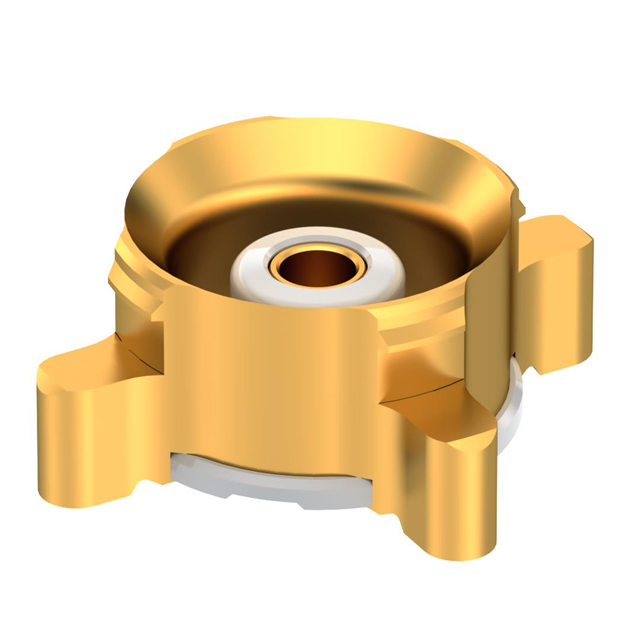

R223424000
ActiveRadiall USA, Inc.
RF CONNECTOR, FEMALE, BOARD MOUNT, SURFACE MOUNT TERMINAL, RECEPTACLE,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R223424000 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | MMBX |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 12.4 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 330 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.66 | |
| 10 | $ 7.80 | |||
| 25 | $ 7.35 | |||
| 50 | $ 7.16 | |||
| 100 | $ 6.97 | |||
| 300 | $ 6.22 | |||
| 500 | $ 5.84 | |||
| 1000 | $ 5.16 | |||
Description
General part information
R22342 Series
MMBX Connector Jack, Female Socket 50 Ohms Surface Mount Solder
