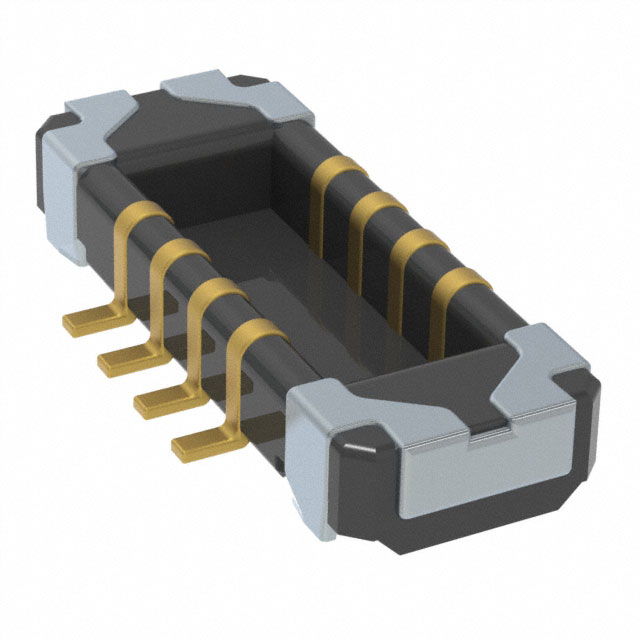

BM23FR0.6-8DP-0.35V(895)
ActiveHirose Electric USA, Inc.
BOARD TO BOARD & MEZZANINE CONNECTORS 8P HDR STRGHT SMT SIGNAL ONLY
Deep-Dive with AI
Search across all available documentation for this part.
BM23FR0.6-8DP-0.35V(895)
ActiveHirose Electric USA, Inc.
BOARD TO BOARD & MEZZANINE CONNECTORS 8P HDR STRGHT SMT SIGNAL ONLY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BM23FR0.6-8DP-0.35V(895) |
|---|---|
| Connector Type | Header, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 1.97 Áin |
| Contact Finish Thickness | 0.05 Ám |
| Features | Solder Retention |
| Height Above Board | 0.02 in |
| Height Above Board | 0.5 mm |
| Mated Stacking Heights | 0.6 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Pitch [x] | 0.35 mm |
| Pitch [x] | 0.014 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.76 | |
| 10 | $ 0.64 | |||
| 25 | $ 0.62 | |||
| 50 | $ 0.60 | |||
| 100 | $ 0.58 | |||
| 250 | $ 0.53 | |||
| 500 | $ 0.47 | |||
| Digi-Reel® | 1 | $ 0.76 | ||
| 10 | $ 0.64 | |||
| 25 | $ 0.62 | |||
| 50 | $ 0.60 | |||
| 100 | $ 0.58 | |||
| 250 | $ 0.53 | |||
| 500 | $ 0.47 | |||
| Tape & Reel (TR) | 1000 | $ 0.42 | ||
| 2000 | $ 0.39 | |||
| 3000 | $ 0.38 | |||
| 5000 | $ 0.37 | |||
| 10000 | $ 0.35 | |||
| 25000 | $ 0.34 | |||
Description
General part information
BM23FR0.6 Series
8 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
