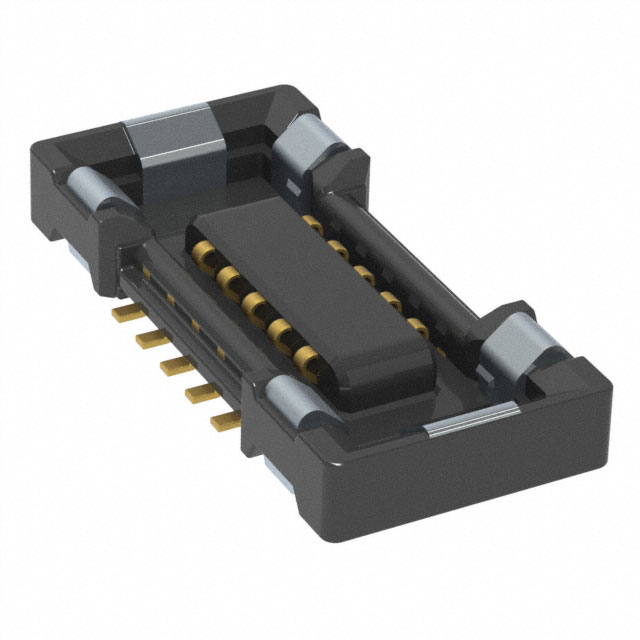

BM23FR0.6-10DS-0.35V(895)
ActiveHirose Electric USA, Inc.
CONN RCPT 10POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
BM23FR0.6-10DS-0.35V(895)
ActiveHirose Electric USA, Inc.
CONN RCPT 10POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BM23FR0.6-10DS-0.35V(895) |
|---|---|
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 1.97 Áin |
| Contact Finish Thickness | 0.05 Ám |
| Features | Solder Retention |
| Height Above Board | 0.024 in |
| Height Above Board | 0.61 mm |
| Mated Stacking Heights | 0.6 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Pitch [x] | 0.35 mm |
| Pitch [x] | 0.014 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.94 | |
| 10 | $ 0.79 | |||
| 25 | $ 0.76 | |||
| 50 | $ 0.74 | |||
| 100 | $ 0.71 | |||
| 250 | $ 0.65 | |||
| 500 | $ 0.58 | |||
| Digi-Reel® | 1 | $ 0.94 | ||
| 10 | $ 0.79 | |||
| 25 | $ 0.76 | |||
| 50 | $ 0.74 | |||
| 100 | $ 0.71 | |||
| 250 | $ 0.65 | |||
| 500 | $ 0.58 | |||
| Tape & Reel (TR) | 1000 | $ 0.40 | ||
Description
General part information
BM23FR0.6 Series
10 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
