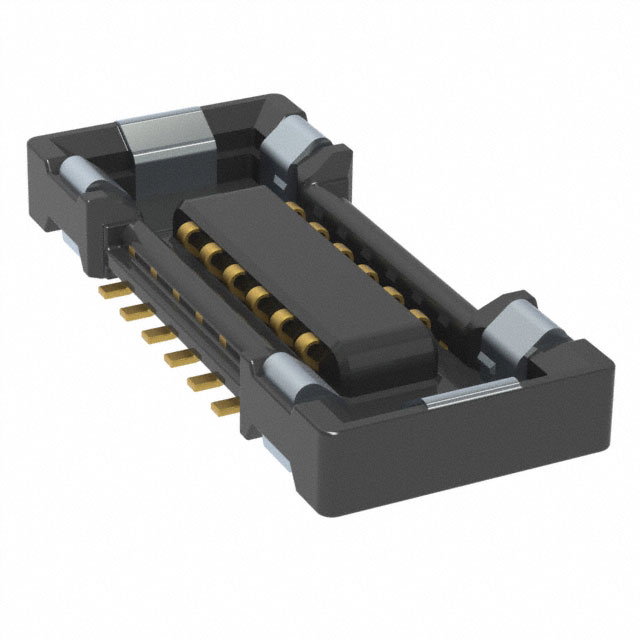

BM23FR0.6-12DS-0.35V(51)

Active

Hirose Electric USA, Inc.

BOARD STACKING CONNECTOR, 12 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, SURFACE MOUNT TERMINAL,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BM23FR0.6-12DS-0.35V(51)

Active

Hirose Electric USA, Inc.

BOARD STACKING CONNECTOR, 12 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, SURFACE MOUNT TERMINAL,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BM23FR0.6-12DS-0.35V(51)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	1.97 Áin
Contact Finish Thickness	0.05 Ám
Features	Solder Retention
Height Above Board	0.024 in
Height Above Board	0.61 mm
Mated Stacking Heights	0.6 mm
Mounting Type	Surface Mount
Number of Positions	12
Number of Rows	2
Pitch [x]	0.35 mm
Pitch [x]	0.014 in

BM23FR0.6 Series

Part	Mounting Type	Number of Rows	Mated Stacking Heights	Number of Positions	Contact Finish	Pitch [x]	Pitch [x]	Connector Type	Features	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric USA, Inc. BM23FR0.6-10DS-0.35V(895)	Surface Mount	2	0.6 mm	10	Gold	0.35 mm	0.014 in	Center Strip Contacts Receptacle	Solder Retention	0.024 in	0.61 mm	1.97 Áin	0.05 Ám
Hirose Electric USA, Inc. BM23FR0.6-24DP-0.35V(895)	Surface Mount	2	0.6 mm	24	Gold	0.35 mm	0.014 in	Header Outer Shroud Contacts	Solder Retention	0.02 in	0.5 mm	1.97 Áin	0.05 Ám
Hirose Electric USA, Inc. BM23FR0.6-8DS-0.35V(895)	Surface Mount	2	0.6 mm	8	Gold	0.35 mm	0.014 in	Center Strip Contacts Receptacle	Solder Retention	0.024 in	0.61 mm	1.97 Áin	0.05 Ám
Hirose Electric USA, Inc. BM23FR0.6-6DS-0.35V(51)	Surface Mount	2	0.6 mm	6	Gold	0.35 mm	0.014 in	Center Strip Contacts Receptacle	Solder Retention	0.024 in	0.61 mm	1.97 Áin	0.05 Ám
Hirose Electric USA, Inc. BM23FR0.6-40DP-0.35V(51)	Surface Mount	2	0.6 mm	40	Gold	0.35 mm	0.014 in	Header Outer Shroud Contacts	Solder Retention	0.02 in	0.5 mm	1.97 Áin	0.05 Ám
Hirose Electric USA, Inc. BM23FR0.6-12DS-0.35V(51)	Surface Mount	2	0.6 mm	12	Gold	0.35 mm	0.014 in	Center Strip Contacts Receptacle	Solder Retention	0.024 in	0.61 mm	1.97 Áin	0.05 Ám
Hirose Electric USA, Inc. BM23FR0.6-8DP-0.35V(895)	Surface Mount	2	0.6 mm	8	Gold	0.35 mm	0.014 in	Header Outer Shroud Contacts	Solder Retention	0.02 in	0.5 mm	1.97 Áin	0.05 Ám
Hirose Electric USA, Inc. BM23FR0.6-8DP-0.35V(51)	Surface Mount	2	0.6 mm	8	Gold	0.35 mm	0.014 in	Header Outer Shroud Contacts	Solder Retention	0.02 in	0.5 mm	1.97 Áin	0.05 Ám
Hirose Electric USA, Inc. BM23FR0.6-24DS-0.35V(895)	Surface Mount	2	0.6 mm	24	Gold	0.35 mm	0.014 in	Center Strip Contacts Receptacle	Solder Retention	0.024 in	0.61 mm	1.97 Áin	0.05 Ám
Hirose Electric USA, Inc. BM23FR0.6-40DP-0.35V(895)	Surface Mount	2	0.6 mm	40	Gold	0.35 mm	0.014 in	Header Outer Shroud Contacts	Solder Retention	0.02 in	0.5 mm	1.97 Áin	0.05 Ám
