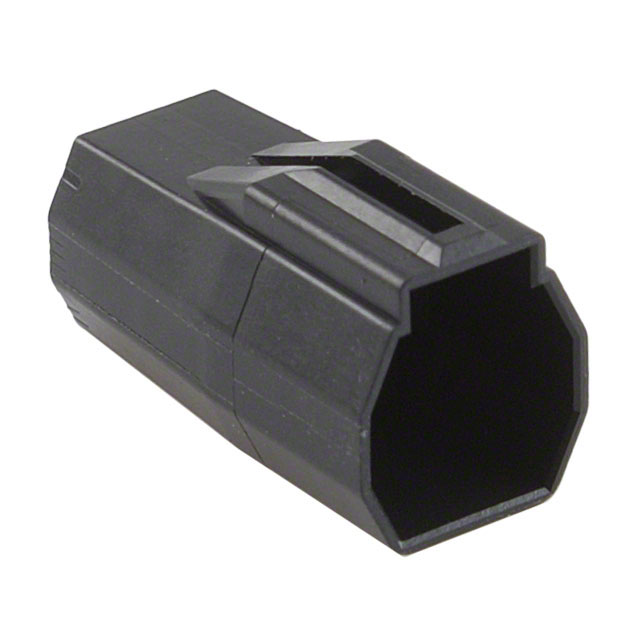

DF62-7EP-2.2C

Obsolete

Hirose Electric USA, Inc.

CONN PLUG HSG 7POS 2.20MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDF62 Series Brochure Datasheet

DF62-7EP-2.2C

Obsolete

Hirose Electric USA, Inc.

CONN PLUG HSG 7POS 2.20MM

Deep-Dive with AI

DocumentsDF62 Series Brochure Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF62-7EP-2.2C

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	7
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-35 °C
Pitch [x]	0.087 in
Pitch [x]	2.2 mm
Row Spacing	2 mm
Row Spacing	0.079 in

DF62 Series

Part	Number of Rows	Mounting Type	Row Spacing	Row Spacing	Color	Fastening Type	Pitch [x]	Pitch [x]	Note	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Type	Connector Type	Contact Termination	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Pin or Socket	Wire Gauge
Hirose Electric USA, Inc. DF62-7EP-2.2C	3	Free Hanging (In-Line)	2 mm	0.079 in	Black	Latch Holder	0.087 in	2.2 mm	Contacts Not Included	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	7	Male Pin	Plug	Crimp
Hirose Electric USA, Inc. DF62-7EP-2.2C(10)	3	Free Hanging (In-Line)	2 mm	0.079 in	White	Latch Holder	0.087 in	2.2 mm	Contacts Not Included	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	7	Male Pin	Plug	Crimp
Hirose Electric USA, Inc. DF62-3S-2.2C	2	Free Hanging (In-Line)	2 mm	0.079 in	White	Latch Lock	0.087 in	2.2 mm	Contacts Not Included	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C		Female Socket	Socket	Crimp
Hirose Electric USA, Inc. DF62-2428SCFA																Crimp	24 AWG	28 AWG	8 çin	0.203 çm	Gold	Socket
Hirose Electric USA, Inc. DF62-6S-2.2C(11)	2	Free Hanging (In-Line)	2 mm	0.079 in	Black	Latch Lock	0.087 in	2.2 mm	Contacts Not Included	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	6	Female Socket	Socket	Crimp
Hirose Electric USA, Inc. DF62-2EP-2.2C(10)	1	Free Hanging (In-Line)			White	Latch Holder	0.087 in	2.2 mm	Contacts Not Included	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	2	Male Pin	Plug	Crimp
Hirose Electric USA, Inc. DF62-30SCA																Crimp			8 çin	0.203 çm	Gold	Socket	30 AWG
Hirose Electric USA, Inc. DF62-4EP-2.2C(10)	2	Free Hanging (In-Line)	2 mm	0.079 in	White	Latch Holder	0.087 in	2.2 mm	Contacts Not Included	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	4	Male Pin	Plug	Crimp
Hirose Electric USA, Inc. DF62-EP22PCF																Crimp			39.4 Áin	1 Ám	Tin	Pin	22 AWG
Hirose Electric USA, Inc. DF62-2428SCFA(05)																Crimp	24 AWG	28 AWG	8 çin	0.203 çm	Gold	Socket

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DF62 Series

7 Rectangular Connectors - Housings Plug Black 0.087" (2.20mm)
