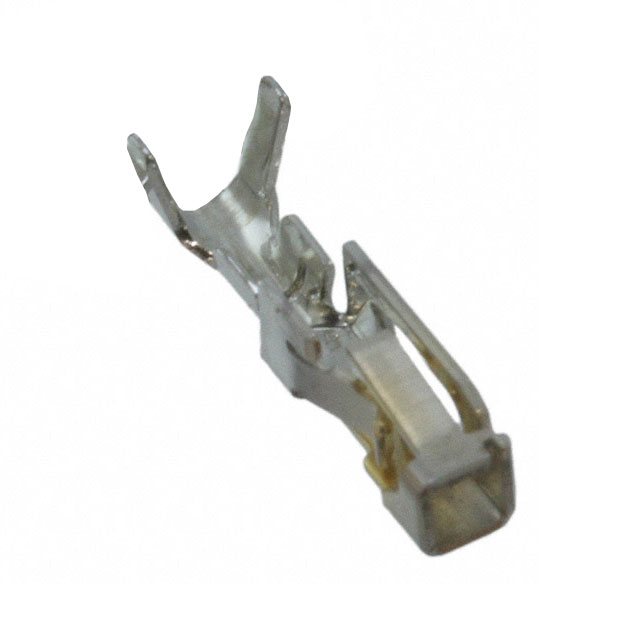

DF62-30SCA

Active

Hirose Electric USA, Inc.

CONN SOCKET 30AWG CRIMP GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDF62 Series Catalog Datasheet

DF62-30SCA

Active

Hirose Electric USA, Inc.

CONN SOCKET 30AWG CRIMP GOLD

Deep-Dive with AI

DocumentsDF62 Series Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF62-30SCA

Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Termination	Crimp
Pin or Socket	Socket
Wire Gauge	30 AWG

DF62 Series

Part	Number of Rows	Mounting Type	Row Spacing	Row Spacing	Color	Fastening Type	Pitch [x]	Pitch [x]	Note	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Type	Connector Type	Contact Termination	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Pin or Socket	Wire Gauge
Hirose Electric USA, Inc. DF62-7EP-2.2C	3	Free Hanging (In-Line)	2 mm	0.079 in	Black	Latch Holder	0.087 in	2.2 mm	Contacts Not Included	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	7	Male Pin	Plug	Crimp
Hirose Electric USA, Inc. DF62-7EP-2.2C(10)	3	Free Hanging (In-Line)	2 mm	0.079 in	White	Latch Holder	0.087 in	2.2 mm	Contacts Not Included	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	7	Male Pin	Plug	Crimp
Hirose Electric USA, Inc. DF62-3S-2.2C	2	Free Hanging (In-Line)	2 mm	0.079 in	White	Latch Lock	0.087 in	2.2 mm	Contacts Not Included	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C		Female Socket	Socket	Crimp
Hirose Electric USA, Inc. DF62-2428SCFA																Crimp	24 AWG	28 AWG	8 çin	0.203 çm	Gold	Socket
Hirose Electric USA, Inc. DF62-6S-2.2C(11)	2	Free Hanging (In-Line)	2 mm	0.079 in	Black	Latch Lock	0.087 in	2.2 mm	Contacts Not Included	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	6	Female Socket	Socket	Crimp
Hirose Electric USA, Inc. DF62-2EP-2.2C(10)	1	Free Hanging (In-Line)			White	Latch Holder	0.087 in	2.2 mm	Contacts Not Included	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	2	Male Pin	Plug	Crimp
Hirose Electric USA, Inc. DF62-30SCA																Crimp			8 çin	0.203 çm	Gold	Socket	30 AWG
Hirose Electric USA, Inc. DF62-4EP-2.2C(10)	2	Free Hanging (In-Line)	2 mm	0.079 in	White	Latch Holder	0.087 in	2.2 mm	Contacts Not Included	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	4	Male Pin	Plug	Crimp
Hirose Electric USA, Inc. DF62-EP22PCF																Crimp			39.4 Áin	1 Ám	Tin	Pin	22 AWG
Hirose Electric USA, Inc. DF62-2428SCFA(05)																Crimp	24 AWG	28 AWG	8 çin	0.203 çm	Gold	Socket

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 0.21

Description

General part information

DF62 Series

Socket Contact Gold 30 AWG Crimp

Documents

Technical documentation and resources

DF62 Series Catalog

Datasheet
