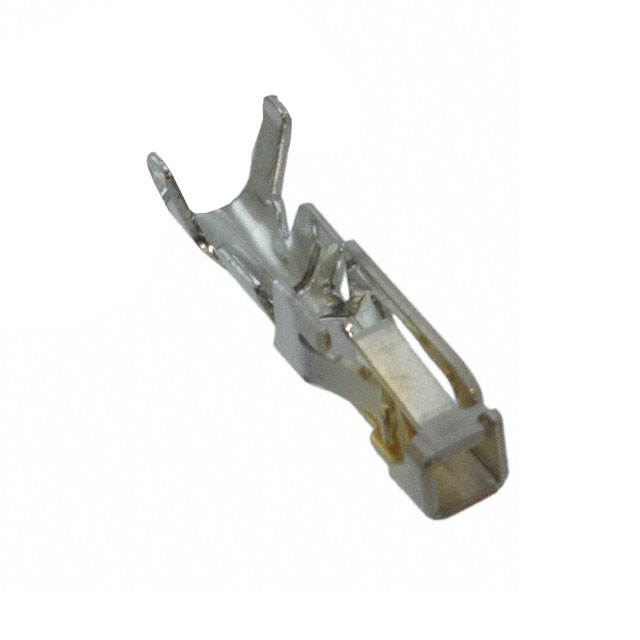

DF62-2428SCFA

Active

Hirose Electric USA, Inc.

CONN SOCKET 24-28AWG CRIMP GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDF62-2428SCFA Spec Datasheet +1

DF62-2428SCFA

Active

Hirose Electric USA, Inc.

CONN SOCKET 24-28AWG CRIMP GOLD

Deep-Dive with AI

DocumentsDF62-2428SCFA Spec Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF62-2428SCFA

Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Termination	Crimp
Pin or Socket	Socket
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	24 AWG

DF62 Series

Part	Number of Rows	Mounting Type	Row Spacing	Row Spacing	Color	Fastening Type	Pitch [x]	Pitch [x]	Note	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Type	Connector Type	Contact Termination	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Pin or Socket	Wire Gauge
Hirose Electric USA, Inc. DF62-7EP-2.2C	3	Free Hanging (In-Line)	2 mm	0.079 in	Black	Latch Holder	0.087 in	2.2 mm	Contacts Not Included	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	7	Male Pin	Plug	Crimp
Hirose Electric USA, Inc. DF62-7EP-2.2C(10)	3	Free Hanging (In-Line)	2 mm	0.079 in	White	Latch Holder	0.087 in	2.2 mm	Contacts Not Included	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	7	Male Pin	Plug	Crimp
Hirose Electric USA, Inc. DF62-3S-2.2C	2	Free Hanging (In-Line)	2 mm	0.079 in	White	Latch Lock	0.087 in	2.2 mm	Contacts Not Included	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C		Female Socket	Socket	Crimp
Hirose Electric USA, Inc. DF62-2428SCFA																Crimp	24 AWG	28 AWG	8 çin	0.203 çm	Gold	Socket
Hirose Electric USA, Inc. DF62-6S-2.2C(11)	2	Free Hanging (In-Line)	2 mm	0.079 in	Black	Latch Lock	0.087 in	2.2 mm	Contacts Not Included	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	6	Female Socket	Socket	Crimp
Hirose Electric USA, Inc. DF62-2EP-2.2C(10)	1	Free Hanging (In-Line)			White	Latch Holder	0.087 in	2.2 mm	Contacts Not Included	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	2	Male Pin	Plug	Crimp
Hirose Electric USA, Inc. DF62-30SCA																Crimp			8 çin	0.203 çm	Gold	Socket	30 AWG
Hirose Electric USA, Inc. DF62-4EP-2.2C(10)	2	Free Hanging (In-Line)	2 mm	0.079 in	White	Latch Holder	0.087 in	2.2 mm	Contacts Not Included	Polybutylene Terephthalate (PBT)	-35 °C	105 ░C	4	Male Pin	Plug	Crimp
Hirose Electric USA, Inc. DF62-EP22PCF																Crimp			39.4 Áin	1 Ám	Tin	Pin	22 AWG
Hirose Electric USA, Inc. DF62-2428SCFA(05)																Crimp	24 AWG	28 AWG	8 çin	0.203 çm	Gold	Socket

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.23
		10	$ 0.20
		25	$ 0.17
		50	$ 0.16
		100	$ 0.15
		250	$ 0.13
		500	$ 0.13
		1000	$ 0.10
		2500	$ 0.09
	Tape & Reel (TR)	15000	$ 0.07
		30000	$ 0.07
		75000	$ 0.07

Description

General part information

DF62 Series

Socket Contact Gold 24-28 AWG Crimp

Documents

Technical documentation and resources

DF62-2428SCFA Spec

Datasheet

DF62 Series Catalog

Datasheet
