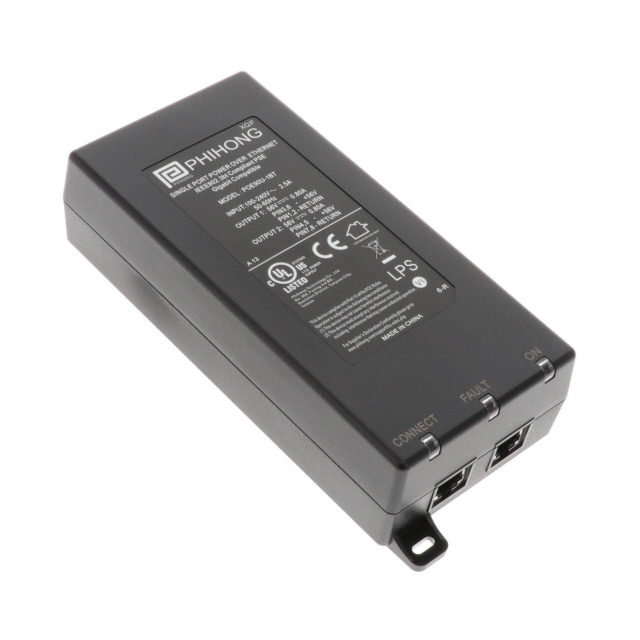

POE90U-1BT6-R
ActivePhihong USA
IEEE802.3BT - POE DESKTOP C14
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
POE90U-1BT6-R
ActivePhihong USA
IEEE802.3BT - POE DESKTOP C14
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | POE90U-1BT6-R |
|---|---|
| Approval Agency | IEC, cULus |
| Compliance | IEEE802.3bt |
| Current - Output | 1.6 A |
| Efficiency | Level VI |
| Features | SCP, OCP, OVP |
| Input Connector | IEC 320-C14 (Power), RJ45 (Data) |
| Mounting Type | Desktop |
| Number of Ports | 1 |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -20 C |
| Output Connector | RJ45 (Data, Power) |
| Power (Watts) - Per Port | 90 W |
| Size / Dimension [x] | 6.54 inches |
| Size / Dimension [x] | 166 mm |
| Size / Dimension [y] | 80 mm |
| Size / Dimension [y] | 3.15 in |
| Size / Dimension [z] | 1.72 " |
| Size / Dimension [z] | 43.6 mm |
| Standard Number | 60950-1, 62368-1 |
| Type | Midspan Injector |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 56 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 75.69 | |
| 10 | $ 70.96 | |||
| 25 | $ 65.82 | |||
| 50 | $ 64.88 | |||
| 100 | $ 59.23 | |||
Description
General part information
POE90U Series
56V Power Over Ethernet (POE) 1 Port Midspan Injector Data Rate
