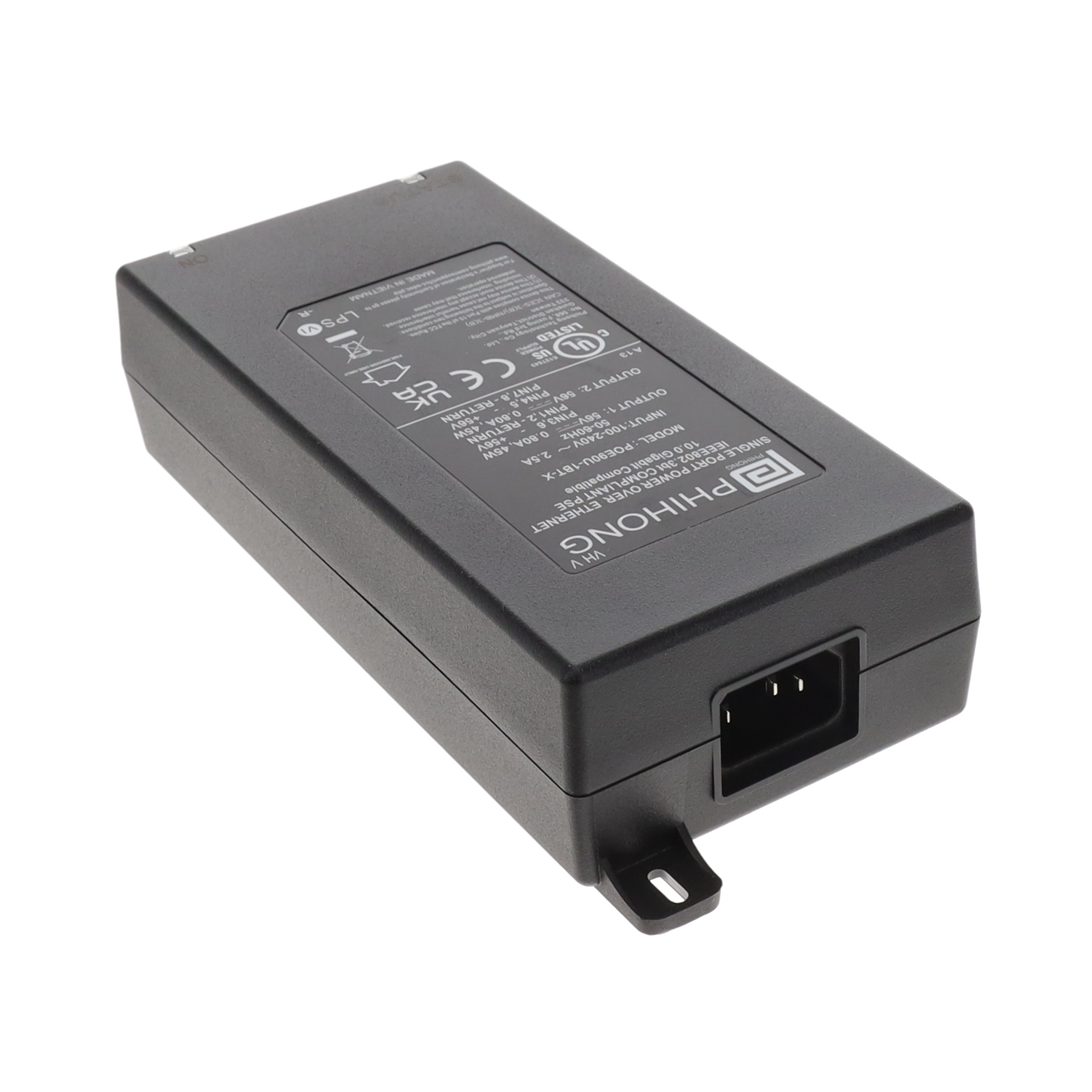

POE90U-1BT-X-R

Active

Phihong USA

IEEE802.3BT - POE DESKTOP C14 10

Search across all available documentation for this part.

Active

Phihong USA

IEEE802.3BT - POE DESKTOP C14 10

Technical Specifications

Parameters and characteristics for this part

Part	Type	Efficiency	Number of Ports	Output Connector	Features	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Power (Watts) - Per Port	Voltage - Output	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Compliance	Current - Output	Input Connector	Standard Number	Efficiency
Phihong USA POE90U-1BT	Midspan Injector	75 %	1	RJ45 (Data Power)	OCP OVP SCP	CE cULus	90 VAC	264 VAC	80 mm	1.72 "	43.6 mm	3.15 in	6.54 inches	166 mm	90 W	56 V	Desktop	-20 C	40 °C	IEEE802.3bt	1.6 A	IEC 320-C8 (Power) RJ45 (Data)
Phihong USA POE90U-560-X-R	Midspan Injector	75 %	1	RJ45 (Data Power)	OCP OVP SCP	cULus IEC	90 VAC	264 VAC	80 mm	1.72 "	43.6 mm	3.15 in	6.54 inches	166 mm	90 W	56 V	Desktop	-20 C	60 °C		1.6 A	IEC 320-C14 (Power) RJ45 (Data)	60950-1
Phihong USA POE90U-1BT6-R	Midspan Injector		1	RJ45 (Data Power)	OCP OVP SCP	cULus IEC	90 VAC	264 VAC	80 mm	1.72 "	43.6 mm	3.15 in	6.54 inches	166 mm	90 W	56 V	Desktop	-20 C	40 °C	IEEE802.3bt	1.6 A	IEC 320-C14 (Power) RJ45 (Data)	60950-1 62368-1	Level VI
Phihong USA POE90U-1BT-X-R	Midspan Injector		1	RJ45 (Data Power)	OCP OVP SCP	cULus IEC	90 VAC	264 VAC	80 mm	1.72 "	43.6 mm	3.15 in	6.54 inches	166 mm	90 W	56 V	Desktop	-20 C	40 °C	IEEE802.3bt	1.6 A	IEC 320-C14 (Power) RJ45 (Data)	60950-1	Level VI
Phihong USA POE90U-560-5-R	Midspan Injector	75 %	1	RJ45 (Data Power)	OCP OVP SCP	cULus IEC	90 VAC	264 VAC	80 mm	1.72 "	43.6 mm	3.15 in	6.54 inches	166 mm	90 W	56 V	Desktop	-20 C	60 °C		1.6 A	IEC 320-C14 (Power) RJ45 (Data)	60950-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

56V Power Over Ethernet (POE) 1 Port Midspan Injector Data Rate
