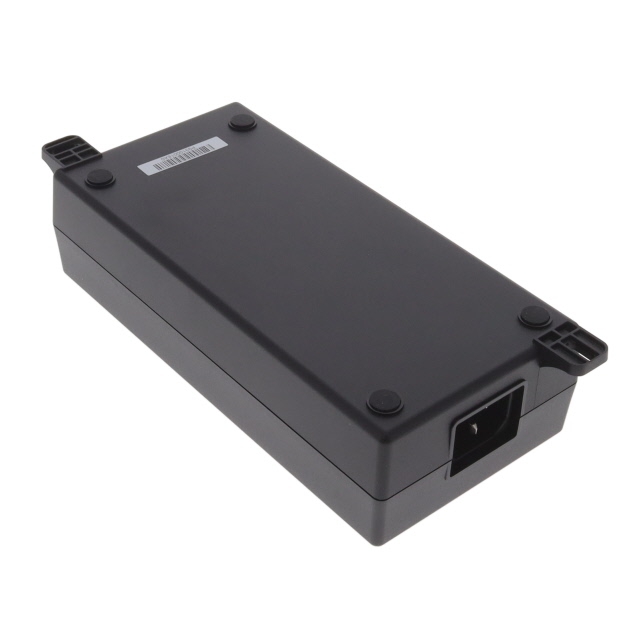

POE90U-560-X-R

Active

Phihong USA

PASSIVE POE ADAPTER C14 10 GIGAB

Search across all available documentation for this part.

Active

Phihong USA

PASSIVE POE ADAPTER C14 10 GIGAB

Technical Specifications

Parameters and characteristics for this part

Part	Type	Efficiency	Number of Ports	Output Connector	Features	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Power (Watts) - Per Port	Voltage - Output	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Compliance	Current - Output	Input Connector	Standard Number	Efficiency
Phihong USA POE90U-1BT	Midspan Injector	75 %	1	RJ45 (Data Power)	OCP OVP SCP	CE cULus	90 VAC	264 VAC	80 mm	1.72 "	43.6 mm	3.15 in	6.54 inches	166 mm	90 W	56 V	Desktop	-20 C	40 °C	IEEE802.3bt	1.6 A	IEC 320-C8 (Power) RJ45 (Data)
Phihong USA POE90U-560-X-R	Midspan Injector	75 %	1	RJ45 (Data Power)	OCP OVP SCP	cULus IEC	90 VAC	264 VAC	80 mm	1.72 "	43.6 mm	3.15 in	6.54 inches	166 mm	90 W	56 V	Desktop	-20 C	60 °C		1.6 A	IEC 320-C14 (Power) RJ45 (Data)	60950-1
Phihong USA POE90U-1BT6-R	Midspan Injector		1	RJ45 (Data Power)	OCP OVP SCP	cULus IEC	90 VAC	264 VAC	80 mm	1.72 "	43.6 mm	3.15 in	6.54 inches	166 mm	90 W	56 V	Desktop	-20 C	40 °C	IEEE802.3bt	1.6 A	IEC 320-C14 (Power) RJ45 (Data)	60950-1 62368-1	Level VI
Phihong USA POE90U-1BT-X-R	Midspan Injector		1	RJ45 (Data Power)	OCP OVP SCP	cULus IEC	90 VAC	264 VAC	80 mm	1.72 "	43.6 mm	3.15 in	6.54 inches	166 mm	90 W	56 V	Desktop	-20 C	40 °C	IEEE802.3bt	1.6 A	IEC 320-C14 (Power) RJ45 (Data)	60950-1	Level VI
Phihong USA POE90U-560-5-R	Midspan Injector	75 %	1	RJ45 (Data Power)	OCP OVP SCP	cULus IEC	90 VAC	264 VAC	80 mm	1.72 "	43.6 mm	3.15 in	6.54 inches	166 mm	90 W	56 V	Desktop	-20 C	60 °C		1.6 A	IEC 320-C14 (Power) RJ45 (Data)	60950-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

56V Power Over Ethernet (POE) 1 Port Midspan Injector Data Rate
