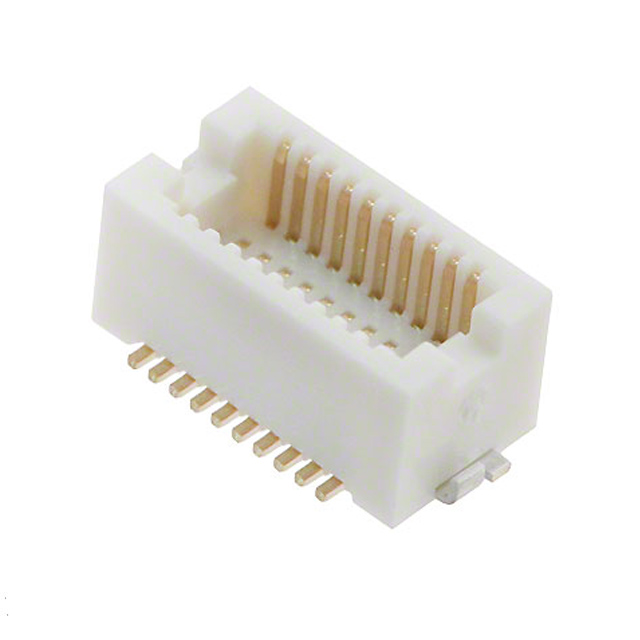

DF12(3.5)-20DP-0.5V(86)
ObsoleteHirose Electric USA, Inc.
CONN HDR 20POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DF12(3.5)-20DP-0.5V(86)
ObsoleteHirose Electric USA, Inc.
CONN HDR 20POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DF12(3.5)-20DP-0.5V(86) |
|---|---|
| Connector Type | Header, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Features | Solder Retention, Board Guide |
| Height Above Board [z] | 0.11 " |
| Height Above Board [z] | 2.8 mm |
| Mated Stacking Heights | 3.5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
DF12 (3.5) Series
| Part | Height Above Board [z] | Height Above Board [z] | Contact Finish Thickness | Contact Finish Thickness | Features | Number of Rows | Pitch [x] | Pitch [x] | Contact Finish | Mounting Type | Mated Stacking Heights | Number of Positions | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | 0.11 " | 2.8 mm | 8 çin | 0.203 çm | Board Guide Solder Retention | 2 | 0.5 mm | 0.02 in | Gold | Surface Mount | 3.5 mm | 20 | Header Outer Shroud Contacts |
Hirose Electric USA, Inc. | 0.11 " | 2.8 mm | 8 çin | 0.203 çm | Board Guide Solder Retention | 2 | 0.5 mm | 0.02 in | Gold | Surface Mount | 3.5 mm | 40 | Header Outer Shroud Contacts |
Hirose Electric USA, Inc. | 0.11 " | 2.8 mm | 8 çin | 0.203 çm | Board Guide Solder Retention | 2 | 0.5 mm | 0.02 in | Gold | Surface Mount | 3.5 mm | 30 | Header Outer Shroud Contacts |
Hirose Electric USA, Inc. | 0.11 " | 2.8 mm | 8 çin | 0.203 çm | Board Guide Solder Retention | 2 | 0.5 mm | 0.02 in | Gold | Surface Mount | 3.5 mm | 36 | Header Outer Shroud Contacts |
Hirose Electric USA, Inc. | 0.11 " | 2.8 mm | Board Guide Solder Retention | 2 | 0.5 mm | 0.02 in | Gold | Surface Mount | 3.5 mm | 40 | Header Outer Shroud Contacts | ||
Hirose Electric USA, Inc. | 0.11 " | 2.8 mm | Board Guide Solder Retention | 2 | 0.5 mm | 0.02 in | Gold | Surface Mount | 3.5 mm | 36 | Header Outer Shroud Contacts |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
DF12 (3.5) Series
20 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
