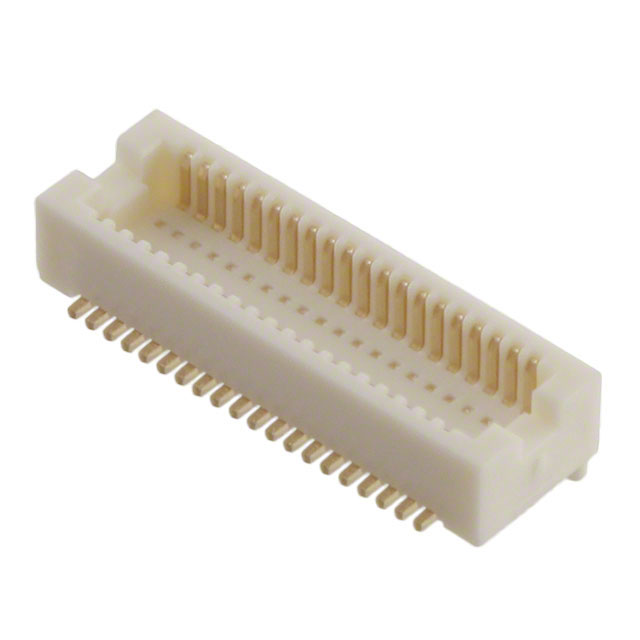

DF12(3.5)-40DP-0.5V(86)

Obsolete

Hirose Electric USA, Inc.

CONN HDR 40POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN HDR 40POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	DF12(3.5)-40DP-0.5V(86)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Features	Solder Retention, Board Guide
Height Above Board [z]	0.11 "
Height Above Board [z]	2.8 mm
Mated Stacking Heights	3.5 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Height Above Board [z]	Height Above Board [z]	Contact Finish Thickness	Contact Finish Thickness	Features	Number of Rows	Pitch [x]	Pitch [x]	Contact Finish	Mounting Type	Mated Stacking Heights	Number of Positions	Connector Type
Hirose Electric USA, Inc. DF12(3.5)-20DP-0.5V(86)	0.11 "	2.8 mm	8 çin	0.203 çm	Board Guide Solder Retention	2	0.5 mm	0.02 in	Gold	Surface Mount	3.5 mm	20	Header Outer Shroud Contacts
Hirose Electric USA, Inc. DF12(3.5)-40DP-0.5V(86)	0.11 "	2.8 mm	8 çin	0.203 çm	Board Guide Solder Retention	2	0.5 mm	0.02 in	Gold	Surface Mount	3.5 mm	40	Header Outer Shroud Contacts
Hirose Electric USA, Inc. DF12(3.5)-30DP-0.5V(86)	0.11 "	2.8 mm	8 çin	0.203 çm	Board Guide Solder Retention	2	0.5 mm	0.02 in	Gold	Surface Mount	3.5 mm	30	Header Outer Shroud Contacts
Hirose Electric USA, Inc. DF12(3.5)-36DP-0.5V(86)	0.11 "	2.8 mm	8 çin	0.203 çm	Board Guide Solder Retention	2	0.5 mm	0.02 in	Gold	Surface Mount	3.5 mm	36	Header Outer Shroud Contacts
Hirose Electric USA, Inc. DF12(3.5)40DP0.5V(80	0.11 "	2.8 mm			Board Guide Solder Retention	2	0.5 mm	0.02 in	Gold	Surface Mount	3.5 mm	40	Header Outer Shroud Contacts
Hirose Electric USA, Inc. DF12(3.5)36DP0.5V(80	0.11 "	2.8 mm			Board Guide Solder Retention	2	0.5 mm	0.02 in	Gold	Surface Mount	3.5 mm	36	Header Outer Shroud Contacts
