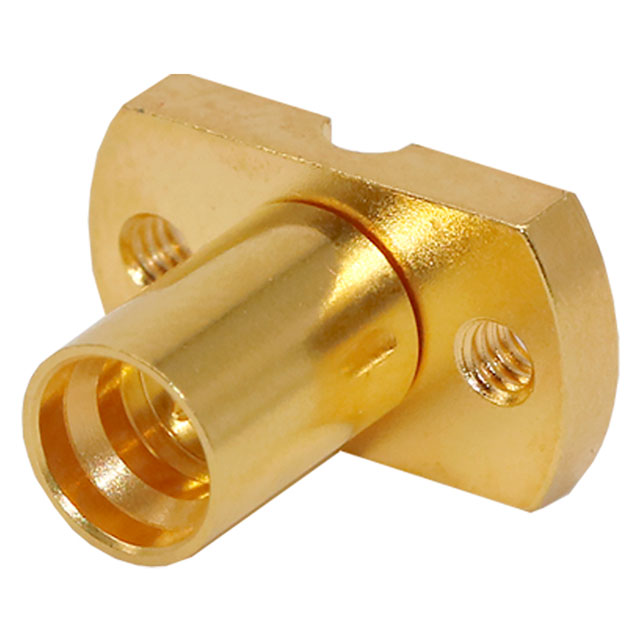

125-0701-241

Active

Cinch Connectivity Solutions Johnson

SMPM COMPRESSION CONNECTOR, MICR

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Johnson

SMPM COMPRESSION CONNECTOR, MICR

Technical Specifications

Parameters and characteristics for this part

Specification	125-0701-241

Body Finish	Gold
Body Material	Beryllium Copper, Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMPM
Connector Type	Male Pin, Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Full Detent
Frequency - Max [Max]	65 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Compression
Voltage Rating	325 V

Part	Body Finish	Shield Termination	Impedance	Features	Frequency - Max [Max]	Connector Type	Body Material	Center Contact Material	Mounting Type	Connector Style	Voltage Rating	Fastening Type	Contact Termination	Number of Ports	Dielectric Material	Center Contact Plating	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Mounting Feature
Cinch Connectivity Solutions Johnson 125-0701-811	Gold	Solder	50 Ohms	Full Detent	26.5 GHz	Male Pin Plug	Beryllium Copper	Beryllium Copper	Board Edge End Launch	SMPM	325 V	Snap-On	Solder	1	Polytetrafluoroethylene (PTFE)	Gold	Gold	-65 ░C	165 °C
Cinch Connectivity Solutions Johnson 125-0701-831	Gold	Solder	50 Ohms	Full Detent	65 GHz	Male Pin Plug	Beryllium Copper Brass	Beryllium Copper	Board Edge Cutout Surface Mount	SMPM	325 V	Snap-On	Solder	4	Polytetrafluoroethylene (PTFE)	Gold	Gold	-65 ░C	165 °C
Cinch Connectivity Solutions Johnson 125-0701-241	Gold	Compression	50 Ohms	Full Detent	65 GHz	Jack Male Pin	Beryllium Copper Brass	Beryllium Copper	Surface Mount	SMPM	325 V	Snap-On		1	Polytetrafluoroethylene (PTFE)	Gold	Gold	-65 ░C	165 °C	500	Flange
Cinch Connectivity Solutions Johnson 125-0701-251	Gold	Compression	50 Ohms	Full Detent	65 GHz	Jack Male Pin	Beryllium Copper Brass	Beryllium Copper	Surface Mount	SMPM	325 V	Snap-On		1	Polytetrafluoroethylene (PTFE)	Gold	Gold	-65 ░C	165 °C	500	Flange
Cinch Connectivity Solutions Johnson 125-0701-231	Gold	Solder	50 Ohms	Full Detent	26.5 GHz	Male Pin Plug	Beryllium Copper	Beryllium Copper	Surface Mount	SMPM	325 V	Snap-On	Solder	1	Polytetrafluoroethylene (PTFE)	Gold	Gold	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 15.94

General part information

SMPM Connector Jack, Male Pin 50 Ohms Surface Mount
