125-0701-811
ActiveCinch Connectivity Solutions Johnson

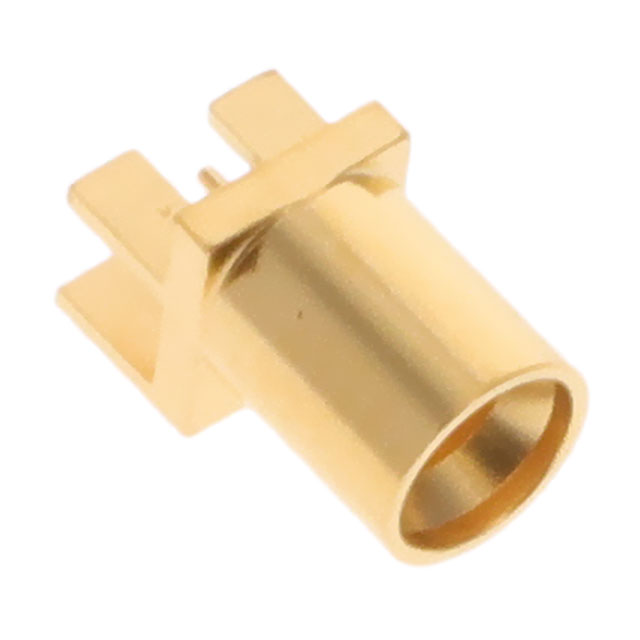

CONN SMPM PLUG 50OHM END LAUNCH
Deep-Dive with AI
Search across all available documentation for this part.
125-0701-811
ActiveCinch Connectivity Solutions Johnson
CONN SMPM PLUG 50OHM END LAUNCH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 125-0701-811 |
|---|---|
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMPM |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Features | Full Detent |
| Frequency - Max [Max] | 26.5 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mounting Type | Board Edge, End Launch |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 325 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.56 | |
| 10 | $ 14.35 | |||
| 25 | $ 13.60 | |||
| 50 | $ 13.41 | |||
| 100 | $ 11.83 | |||
| 250 | $ 11.04 | |||
| 500 | $ 10.80 | |||
Description
General part information
125-0701 Series
SMPM Connector Plug, Male Pin 50 Ohms Board Edge, End Launch Solder
