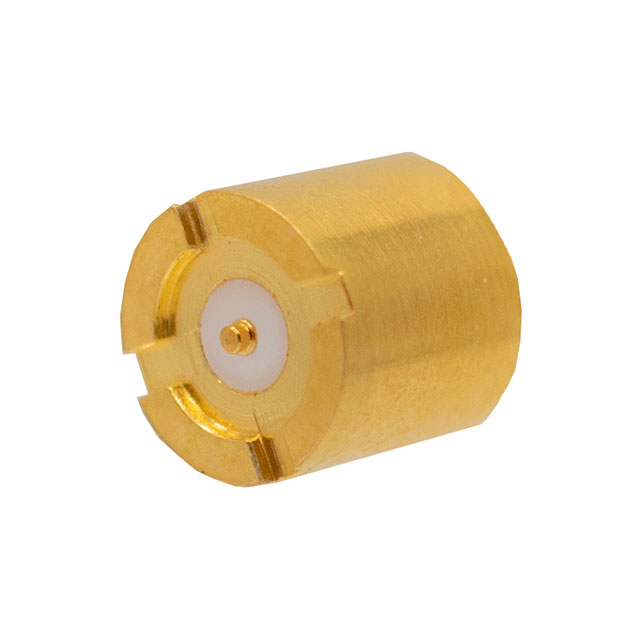

125-0701-231
ActiveCinch Connectivity Solutions Johnson
SMPM MALE, STRAIGHT SURFACE MOUN
Deep-Dive with AI
Search across all available documentation for this part.
125-0701-231
ActiveCinch Connectivity Solutions Johnson
SMPM MALE, STRAIGHT SURFACE MOUN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 125-0701-231 |
|---|---|
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMPM |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Features | Full Detent |
| Frequency - Max [Max] | 26.5 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 325 V |
125-0701 Series
| Part | Body Finish | Shield Termination | Impedance | Features | Frequency - Max [Max] | Connector Type | Body Material | Center Contact Material | Mounting Type | Connector Style | Voltage Rating | Fastening Type | Contact Termination | Number of Ports | Dielectric Material | Center Contact Plating | Housing Color | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cinch Connectivity Solutions Johnson | Gold | Solder | 50 Ohms | Full Detent | 26.5 GHz | Male Pin Plug | Beryllium Copper | Beryllium Copper | Board Edge End Launch | SMPM | 325 V | Snap-On | Solder | 1 | Polytetrafluoroethylene (PTFE) | Gold | Gold | -65 ░C | 165 °C | ||
Cinch Connectivity Solutions Johnson | Gold | Solder | 50 Ohms | Full Detent | 65 GHz | Male Pin Plug | Beryllium Copper Brass | Beryllium Copper | Board Edge Cutout Surface Mount | SMPM | 325 V | Snap-On | Solder | 4 | Polytetrafluoroethylene (PTFE) | Gold | Gold | -65 ░C | 165 °C | ||
Cinch Connectivity Solutions Johnson | Gold | Compression | 50 Ohms | Full Detent | 65 GHz | Jack Male Pin | Beryllium Copper Brass | Beryllium Copper | Surface Mount | SMPM | 325 V | Snap-On | 1 | Polytetrafluoroethylene (PTFE) | Gold | Gold | -65 ░C | 165 °C | 500 | Flange | |
Cinch Connectivity Solutions Johnson | Gold | Compression | 50 Ohms | Full Detent | 65 GHz | Jack Male Pin | Beryllium Copper Brass | Beryllium Copper | Surface Mount | SMPM | 325 V | Snap-On | 1 | Polytetrafluoroethylene (PTFE) | Gold | Gold | -65 ░C | 165 °C | 500 | Flange | |
Cinch Connectivity Solutions Johnson | Gold | Solder | 50 Ohms | Full Detent | 26.5 GHz | Male Pin Plug | Beryllium Copper | Beryllium Copper | Surface Mount | SMPM | 325 V | Snap-On | Solder | 1 | Polytetrafluoroethylene (PTFE) | Gold | Gold | -65 ░C | 165 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 9.91 | |
| 10 | $ 8.91 | |||
| 25 | $ 8.40 | |||
| 50 | $ 8.18 | |||
| 100 | $ 7.97 | |||
| 250 | $ 7.11 | |||
| 500 | $ 6.68 | |||
| 1000 | $ 5.90 | |||
Description
General part information
125-0701 Series
SMPM Connector Plug, Male Pin 50 Ohms Surface Mount Solder
