MURTA40040R

Active

GeneSiC Semiconductor

DIODE MODULE GP 400V 200A 3TOWER

Search across all available documentation for this part.

Active

GeneSiC Semiconductor

DIODE MODULE GP 400V 200A 3TOWER

Technical Specifications

Parameters and characteristics for this part

Specification	MURTA40040R

Current - Average Rectified (Io) (per Diode)	200 A
Current - Reverse Leakage @ Vr	25 µA
Diode Configuration	1 Pair Common Anode
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C

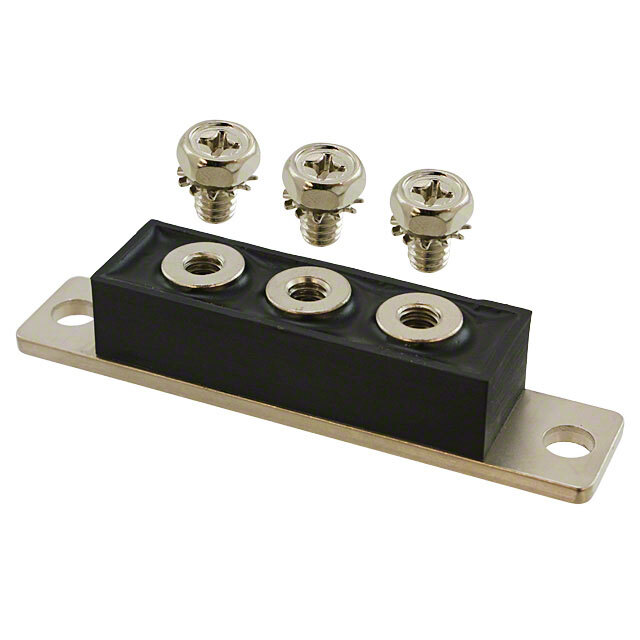

Package / Case	Three Tower
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	Three Tower
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	400 V
Voltage - Forward (Vf) (Max) @ If	1.3 V

Part	Diode Configuration	Speed	Speed	Mounting Type	Package / Case	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Current - Average Rectified (Io) (per Diode)	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
GeneSiC Semiconductor MURTA40040R	1 Pair Common Anode	Standard Recovery >500ns	200 mA	Chassis Mount	Three Tower	25 µA	1.3 V	400 V	Standard	200 A	Three Tower	150 °C	-55 °C
GeneSiC Semiconductor MURTA40040	1 Pair Common Cathode	Standard Recovery >500ns	200 mA	Chassis Mount	Three Tower	25 µA	1.3 V	400 V	Standard	200 A	Three Tower	150 °C	-55 °C
GeneSiC Semiconductor MURTA40060	1 Pair Common Cathode	Standard Recovery >500ns	200 mA	Chassis Mount	Three Tower	25 µA	1.7 V	600 V	Standard	200 A	Three Tower	150 °C	-55 °C
GeneSiC Semiconductor MURTA40060R	1 Pair Common Anode	Standard Recovery >500ns	200 mA	Chassis Mount	Three Tower	25 µA	1.7 V	600 V	Standard	200 A	Three Tower	150 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	48	$ 133.34

General part information

Diode Array 1 Pair Common Anode 400 V 200A Chassis Mount Three Tower
