HR25-9TR-20PC

Obsolete

Hirose Electric USA, Inc.

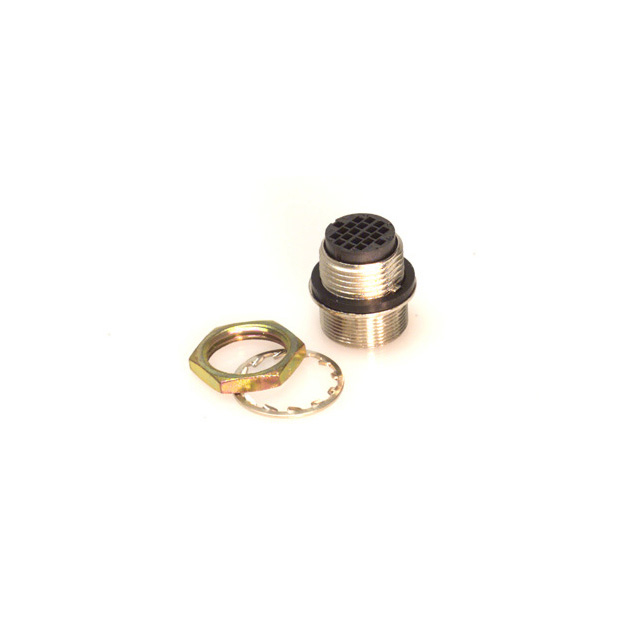

CONN RCPT HSNG MALE 20POS PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HR25-9TR-20PC

Obsolete

Hirose Electric USA, Inc.

CONN RCPT HSNG MALE 20POS PNL MT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HR25-9TR-20PC

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Crimp
Housing Color	Silver
Insert Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Note	Contacts Not Included
Number of Positions	20
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	9
Shielding	Shielded
Type	For Male Pins

HR25 Series

...

Part	Insert Material	Type	Housing Color	Material Flammability Rating	Mounting Type	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Note	Connector Type	Orientation	Number of Positions	Shielding	Contact Shape	Features	Contact Type	Shell Finish	Shell Size - Insert	Primary Material	Contact Finish - Mating	Voltage Rating	Contact Material	Number of Positions	Color	Applications	Mounting Feature	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Backshell Material, Plating
Hirose Electric USA, Inc. HR25-7R-6PA(71)
Hirose Electric USA, Inc. HR25-9R-20P(71)
Hirose Electric USA, Inc. HR25-9TJ-16SC	Polyphenylene Sulfide (PPS)	For Female Sockets	Silver	UL94 V-0	Free Hanging (In-Line)	Zinc Alloy	-25 °C	85 °C	Contacts Not Included	Jack Housing	Keyed	16	Shielded	Circular	Backshell Cable Clamp Strain Relief	Crimp	Nickel	9
Hirose Electric USA, Inc. HR25-9TR-12S(71)	Polyphenylene Sulfide (PPS)			UL94 V-0		Zinc Alloy	-25 °C	85 °C		Receptacle Female Sockets	Keyed		Shielded				Nickel	9	Metal	Gold	30 VAC 42 VDC	Phosphor Bronze	12	Silver	Industrial	Bulkhead - Rear Side Nut	0.203 Ám	8 Áin
Hirose Electric USA, Inc. HR25-7TJ-6P(72)	Polyphenylene Sulfide (PPS)			UL94 V-0	Free Hanging (In-Line)	Zinc Alloy	-25 °C	85 °C		Jack Male Pins	Keyed		Shielded		Backshell Clamp Strain Relief		Nickel	7	Metal	Gold	30 VAC 42 VDC	Phosphor Bronze	6	Black Silver	Industrial		0.203 Ám	8 Áin	Brass Nickel
Hirose Electric USA, Inc. HR25-9TR-20PC	Polyphenylene Sulfide (PPS)	For Male Pins	Silver	UL94 V-0		Zinc Alloy	-25 °C	85 °C	Contacts Not Included	Receptacle Housing	Keyed		Shielded	Circular		Crimp	Nickel	9					20			Bulkhead - Rear Side Nut
