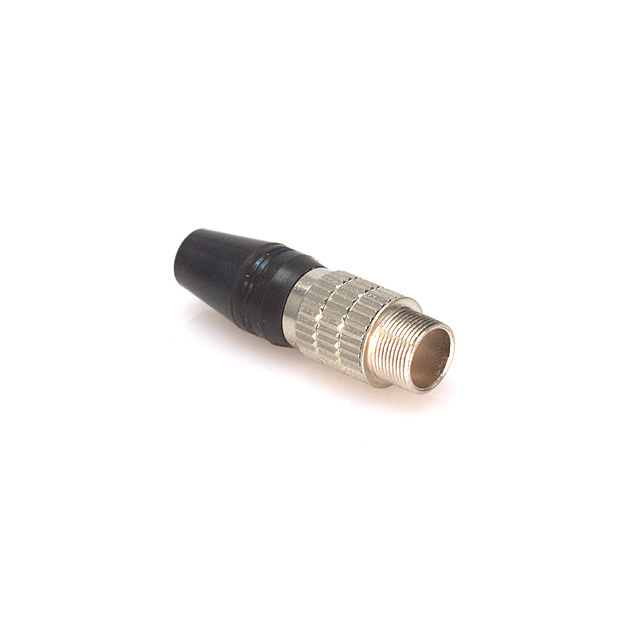

HR25-7TJ-6P(72)

Active

Hirose Electric USA, Inc.

CONN JACK MALE 6P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

HR25-7TJ-6P(72)

Active

Hirose Electric USA, Inc.

CONN JACK MALE 6P GOLD SLDR CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HR25-7TJ-6P(72)

Applications	Industrial
Backshell Material, Plating	Nickel, Brass
Color	Black, Silver
Connector Type	Jack, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Material	Phosphor Bronze
Features	Backshell, Strain Relief, Clamp
Insert Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	7
Shielding	Shielded
Voltage Rating	30 VAC, 42 VDC

HR25 Series

...

Part	Insert Material	Type	Housing Color	Material Flammability Rating	Mounting Type	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Note	Connector Type	Orientation	Number of Positions	Shielding	Contact Shape	Features	Contact Type	Shell Finish	Shell Size - Insert	Primary Material	Contact Finish - Mating	Voltage Rating	Contact Material	Number of Positions	Color	Applications	Mounting Feature	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Backshell Material, Plating
Hirose Electric USA, Inc. HR25-7R-6PA(71)
Hirose Electric USA, Inc. HR25-9R-20P(71)
Hirose Electric USA, Inc. HR25-9TJ-16SC	Polyphenylene Sulfide (PPS)	For Female Sockets	Silver	UL94 V-0	Free Hanging (In-Line)	Zinc Alloy	-25 °C	85 °C	Contacts Not Included	Jack Housing	Keyed	16	Shielded	Circular	Backshell Cable Clamp Strain Relief	Crimp	Nickel	9
Hirose Electric USA, Inc. HR25-9TR-12S(71)	Polyphenylene Sulfide (PPS)			UL94 V-0		Zinc Alloy	-25 °C	85 °C		Receptacle Female Sockets	Keyed		Shielded				Nickel	9	Metal	Gold	30 VAC 42 VDC	Phosphor Bronze	12	Silver	Industrial	Bulkhead - Rear Side Nut	0.203 Ám	8 Áin
Hirose Electric USA, Inc. HR25-7TJ-6P(72)	Polyphenylene Sulfide (PPS)			UL94 V-0	Free Hanging (In-Line)	Zinc Alloy	-25 °C	85 °C		Jack Male Pins	Keyed		Shielded		Backshell Clamp Strain Relief		Nickel	7	Metal	Gold	30 VAC 42 VDC	Phosphor Bronze	6	Black Silver	Industrial		0.203 Ám	8 Áin	Brass Nickel
Hirose Electric USA, Inc. HR25-9TR-20PC	Polyphenylene Sulfide (PPS)	For Male Pins	Silver	UL94 V-0		Zinc Alloy	-25 °C	85 °C	Contacts Not Included	Receptacle Housing	Keyed		Shielded	Circular		Crimp	Nickel	9					20			Bulkhead - Rear Side Nut
Hirose Electric USA, Inc. HR25-7TR-4P
Hirose Electric USA, Inc. HR25-7TP-8P
Hirose Electric USA, Inc. HR25-7TP-6S
Hirose Electric USA, Inc. HR25-7TR-6PA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 17.70

Description

General part information

HR25 Series

6 Position Circular Connector Jack, Male Pins Solder Cup

Documents

Technical documentation and resources

No documents available
