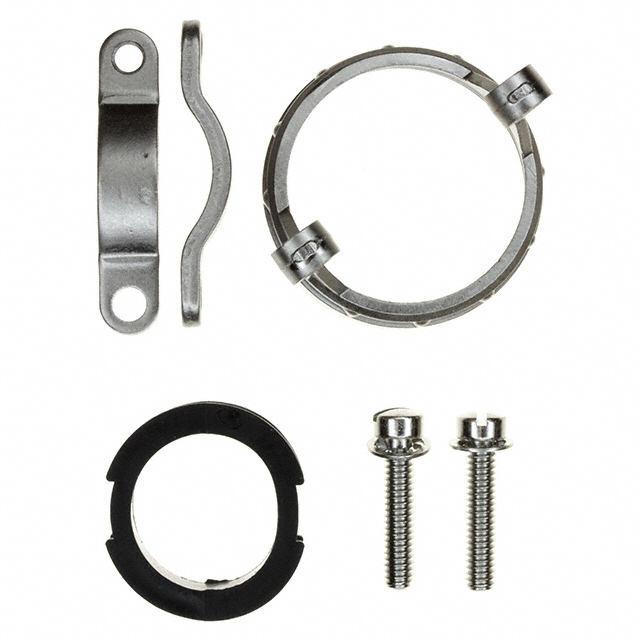

UT022AC

Active

Souriau-Sunbank by Eaton

HOOD, METAL STRAIN RELIEF SZ22; MATERIAL:ALUMINIUM ALLOY; WAYS, NO. OF:35 (UTO), 55 (UTOW); COLOUR:BRUSHED ALUMINIUM; CONNECTOR INSERT TYPE:WATERPROOF CONNECTOR; CONNECTOR SHELL SIZE:22; SERIES:TRIM TRIO; VOLTAGE RATING, AC:7

Deep-Dive with AI

Search across all available documentation for this part.

UT022AC

Active

Souriau-Sunbank by Eaton

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UT022AC

Cable Exit	180 °
Cable Opening [diameter]	19.3 mm
Cable Opening [diameter]	0.76 in
Color	Silver
Diameter - Outside [diameter]	1.41 in
Diameter - Outside [diameter]	35.81 mm
Features	Clamp Screws
For Use With/Related Products	Trim Trio® UTO and UTOW Connectors
Material	Metal
Material Flammability Rating	UL94 V-0
Shell Size - Insert	22
Shielding	Unshielded
Thread Size	1 5/16-18 UNEF
Type	Backshell, Cable Clamp

UT022 Series

Part	Material Flammability Rating	Thread Size	Shielding	Ingress Protection	Cable Exit	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Color	Material	For Use With/Related Products	Shell Size - Insert	Type	Features	Accessory Type	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Plating	Cable Opening	Cable Opening	Includes
Souriau-Sunbank by Eaton UT022JCL	UL94 V-0	PG21	Unshielded	IP68 IP69K	180 °	24 mm	0.591 in	0.945 in	15 mm	Silver	Brass	Trim Trio® UTO and UTOW Connectors	22	Backshell Cable Clamp	Sealing Gland Strain Relief
Souriau-Sunbank by Eaton UT022JC	UL94 V-0	PG21	Unshielded	IP68 IP69K	180 °					Silver	Brass	Trim Trio® UTO and UTOW Connectors	22	Backshell Cable Clamp	Sealing Gland Strain Relief
Souriau-Sunbank by Eaton UT022LPGN	UL94 V-0	PG21	Unshielded		90 °	26 mm	0.433 in	1.024 in	11 mm	Silver	Brass	Trim Trio® UTO and UTOW Connectors	22	Backshell Cable Clamp	Clamp Screws Strain Relief
Souriau-Sunbank by Eaton UT022JCS	UL94 V-0	PG21	Unshielded	IP68 IP69K	180 °					Silver	Brass	Trim Trio® UTO and UTOW Connectors	22	Backshell Cable Clamp	Sealing Gland Strain Relief
Souriau-Sunbank by Eaton UT022DCG										Silver	Metal	Trim Trio® UTG Trim Trio® UTO Trim Trio® UTOW Trim Trio® UTP Receptacles	22		Dust Tight Metal Chain Waterproof	Cap (Cover) Dust
Souriau-Sunbank by Eaton UT022AC	UL94 V-0	1 5/16-18 UNEF	Unshielded		180 °					Silver	Metal	Trim Trio® UTO and UTOW Connectors	22	Backshell Cable Clamp	Clamp Screws		1.41 in	35.81 mm	19.3 mm	0.76 in
Souriau-Sunbank by Eaton UT022JCSL	UL94 V-0		Unshielded	IP68 IP69K	180 °					Silver	Brass	Trim Trio® UTO and UTOW Connectors	22	Backshell Cable Clamp	Sealing Gland Strain Relief
Souriau-Sunbank by Eaton UT022AD		1 5/16-18 UNEF			180 °					Silver	Metal	Trim Trio® UTO and UTOW Connectors	22	Backshell Heat Shrink Adapter			1.563 in	39.7 mm
Souriau-Sunbank by Eaton UT022JCPGN	UL94 V-0	PG21	Unshielded	IP65 - Dust Tight Water Resistant	180 °					Silver	Aluminum Alloy	Trim Trio® UTO and UTOW Connectors	22	Backshell Cable Clamp	Clamp Screws Strain Relief						Nickel	0.874 in	22.2 mm	1 Backshell 1 Cable Clamp 1 Grommet 2 Screws 2 Washers

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 34.30
		10	$ 26.52
		25	$ 24.05
		50	$ 22.38
		100	$ 21.18

Description

General part information

UT022 Series

Silver Connector Backshell, Cable Clamp 1 5/16-18 UNEF 22
