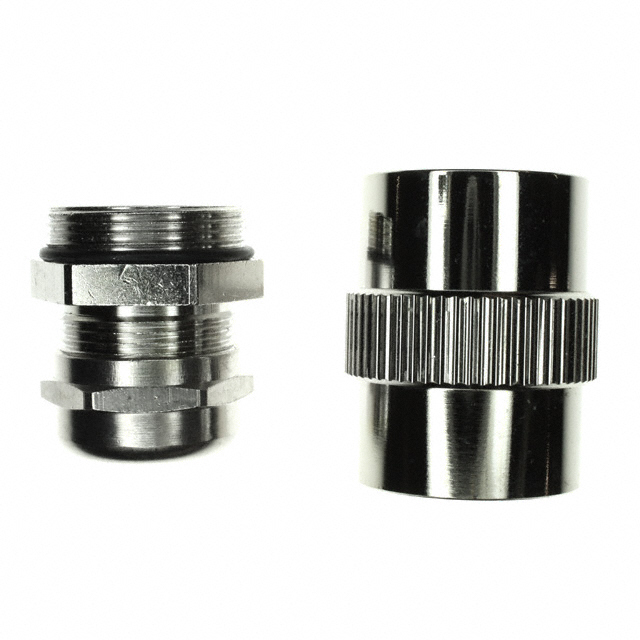

UT022JCS

Active

Souriau-Sunbank by Eaton

CONN BACKSH W/CLMP SZ22 SIL PG21

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UT022JCS

Active

Souriau-Sunbank by Eaton

CONN BACKSH W/CLMP SZ22 SIL PG21

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UT022JCS

Cable Exit	180 °
Color	Silver
Features	Strain Relief, Sealing Gland
For Use With/Related Products	Trim Trio® UTO and UTOW Connectors
Ingress Protection	IP68, IP69K
Material	Brass
Material Flammability Rating	UL94 V-0
Shell Size - Insert	22
Shielding	Unshielded
Thread Size	PG21
Type	Backshell, Cable Clamp

UT022 Series

Part	Material Flammability Rating	Thread Size	Shielding	Ingress Protection	Cable Exit	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Color	Material	For Use With/Related Products	Shell Size - Insert	Type	Features	Accessory Type	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Plating	Cable Opening	Cable Opening	Includes
Souriau-Sunbank by Eaton UT022JCL	UL94 V-0	PG21	Unshielded	IP68 IP69K	180 °	24 mm	0.591 in	0.945 in	15 mm	Silver	Brass	Trim Trio® UTO and UTOW Connectors	22	Backshell Cable Clamp	Sealing Gland Strain Relief
Souriau-Sunbank by Eaton UT022JC	UL94 V-0	PG21	Unshielded	IP68 IP69K	180 °					Silver	Brass	Trim Trio® UTO and UTOW Connectors	22	Backshell Cable Clamp	Sealing Gland Strain Relief
Souriau-Sunbank by Eaton UT022LPGN	UL94 V-0	PG21	Unshielded		90 °	26 mm	0.433 in	1.024 in	11 mm	Silver	Brass	Trim Trio® UTO and UTOW Connectors	22	Backshell Cable Clamp	Clamp Screws Strain Relief
Souriau-Sunbank by Eaton UT022JCS	UL94 V-0	PG21	Unshielded	IP68 IP69K	180 °					Silver	Brass	Trim Trio® UTO and UTOW Connectors	22	Backshell Cable Clamp	Sealing Gland Strain Relief
Souriau-Sunbank by Eaton UT022DCG										Silver	Metal	Trim Trio® UTG Trim Trio® UTO Trim Trio® UTOW Trim Trio® UTP Receptacles	22		Dust Tight Metal Chain Waterproof	Cap (Cover) Dust
Souriau-Sunbank by Eaton UT022AC	UL94 V-0	1 5/16-18 UNEF	Unshielded		180 °					Silver	Metal	Trim Trio® UTO and UTOW Connectors	22	Backshell Cable Clamp	Clamp Screws		1.41 in	35.81 mm	19.3 mm	0.76 in
Souriau-Sunbank by Eaton UT022JCSL	UL94 V-0		Unshielded	IP68 IP69K	180 °					Silver	Brass	Trim Trio® UTO and UTOW Connectors	22	Backshell Cable Clamp	Sealing Gland Strain Relief
Souriau-Sunbank by Eaton UT022AD		1 5/16-18 UNEF			180 °					Silver	Metal	Trim Trio® UTO and UTOW Connectors	22	Backshell Heat Shrink Adapter			1.563 in	39.7 mm
Souriau-Sunbank by Eaton UT022JCPGN	UL94 V-0	PG21	Unshielded	IP65 - Dust Tight Water Resistant	180 °					Silver	Aluminum Alloy	Trim Trio® UTO and UTOW Connectors	22	Backshell Cable Clamp	Clamp Screws Strain Relief						Nickel	0.874 in	22.2 mm	1 Backshell 1 Cable Clamp 1 Grommet 2 Screws 2 Washers

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 31.83

Description

General part information

UT022 Series

Silver Connector Backshell, Cable Clamp PG21 22
