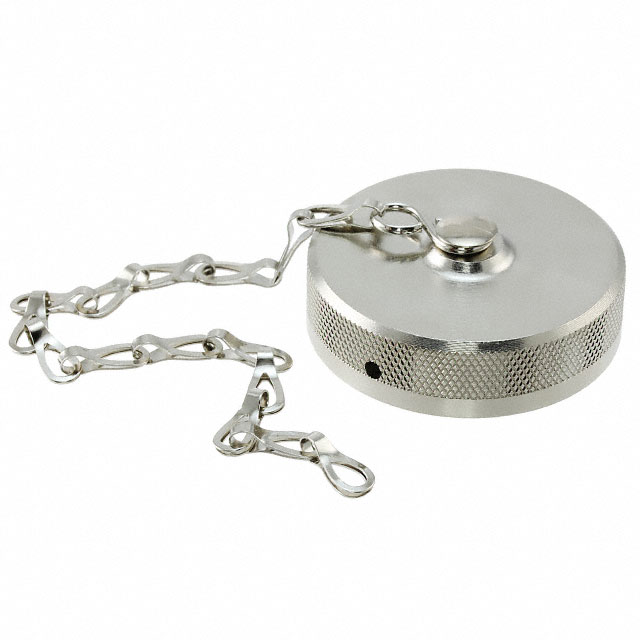

UT022DCG

Active

Souriau-Sunbank by Eaton

CONN DUST COVER 22 SILVER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UT022DCG

Active

Souriau-Sunbank by Eaton

CONN DUST COVER 22 SILVER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UT022DCG

Accessory Type	Dust, Cap (Cover)
Color	Silver
Features	Waterproof, Dust Tight, Metal Chain
For Use With/Related Products	Trim Trio® UTOW, Trim Trio® UTG, Trim Trio® UTP Receptacles, Trim Trio® UTO
Material	Metal
Shell Size - Insert	22

UT022 Series

Part	Material Flammability Rating	Thread Size	Shielding	Ingress Protection	Cable Exit	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Color	Material	For Use With/Related Products	Shell Size - Insert	Type	Features	Accessory Type	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Plating	Cable Opening	Cable Opening	Includes
Souriau-Sunbank by Eaton UT022JCL	UL94 V-0	PG21	Unshielded	IP68 IP69K	180 °	24 mm	0.591 in	0.945 in	15 mm	Silver	Brass	Trim Trio® UTO and UTOW Connectors	22	Backshell Cable Clamp	Sealing Gland Strain Relief
Souriau-Sunbank by Eaton UT022JC	UL94 V-0	PG21	Unshielded	IP68 IP69K	180 °					Silver	Brass	Trim Trio® UTO and UTOW Connectors	22	Backshell Cable Clamp	Sealing Gland Strain Relief
Souriau-Sunbank by Eaton UT022LPGN	UL94 V-0	PG21	Unshielded		90 °	26 mm	0.433 in	1.024 in	11 mm	Silver	Brass	Trim Trio® UTO and UTOW Connectors	22	Backshell Cable Clamp	Clamp Screws Strain Relief
Souriau-Sunbank by Eaton UT022JCS	UL94 V-0	PG21	Unshielded	IP68 IP69K	180 °					Silver	Brass	Trim Trio® UTO and UTOW Connectors	22	Backshell Cable Clamp	Sealing Gland Strain Relief
Souriau-Sunbank by Eaton UT022DCG										Silver	Metal	Trim Trio® UTG Trim Trio® UTO Trim Trio® UTOW Trim Trio® UTP Receptacles	22		Dust Tight Metal Chain Waterproof	Cap (Cover) Dust
Souriau-Sunbank by Eaton UT022AC	UL94 V-0	1 5/16-18 UNEF	Unshielded		180 °					Silver	Metal	Trim Trio® UTO and UTOW Connectors	22	Backshell Cable Clamp	Clamp Screws		1.41 in	35.81 mm	19.3 mm	0.76 in
Souriau-Sunbank by Eaton UT022JCSL	UL94 V-0		Unshielded	IP68 IP69K	180 °					Silver	Brass	Trim Trio® UTO and UTOW Connectors	22	Backshell Cable Clamp	Sealing Gland Strain Relief
Souriau-Sunbank by Eaton UT022AD		1 5/16-18 UNEF			180 °					Silver	Metal	Trim Trio® UTO and UTOW Connectors	22	Backshell Heat Shrink Adapter			1.563 in	39.7 mm
Souriau-Sunbank by Eaton UT022JCPGN	UL94 V-0	PG21	Unshielded	IP65 - Dust Tight Water Resistant	180 °					Silver	Aluminum Alloy	Trim Trio® UTO and UTOW Connectors	22	Backshell Cable Clamp	Clamp Screws Strain Relief						Nickel	0.874 in	22.2 mm	1 Backshell 1 Cable Clamp 1 Grommet 2 Screws 2 Washers

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 19.71
		10	$ 15.19
		25	$ 13.75
		50	$ 12.78
		100	$ 11.90
		250	$ 11.41

Description

General part information

UT022 Series

Connector Cap (Cover), Dust 22 Silver
