V7-1C17D8-048
ActiveHoneywell Sensing and Productivity Solutions

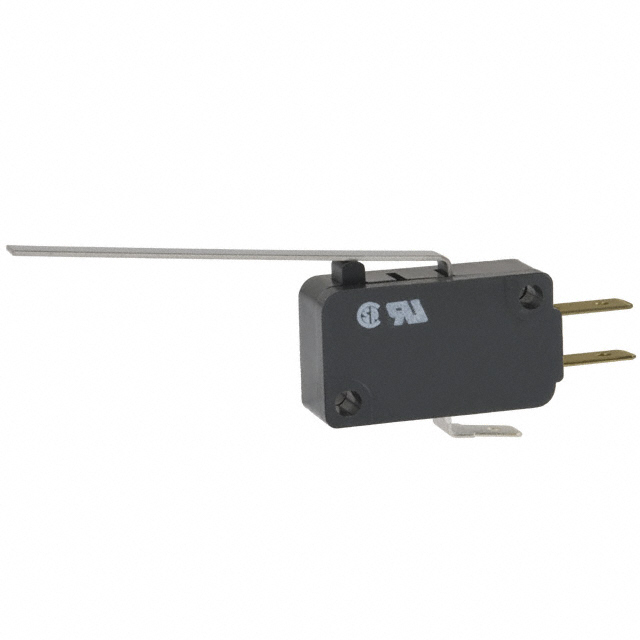

SWITCH SNAP ACTION SPDT 15A 125V
Deep-Dive with AI
Search across all available documentation for this part.
V7-1C17D8-048
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 15A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | V7-1C17D8-048 |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPDT |
| Current Rating (Amps) | 500 mA, 15 A |
| Differential Travel | 1.5 mm |
| Differential Travel | 0.06 " |
| Electrical Life | 100000 Cycles |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Position | 0.6 in |
| Operating Position | 15.2 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 0.164 " |
| Overtravel | 4.2 mm |
| Pretravel | 0.234 in |
| Pretravel | 5.9 mm |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
V7-1C1 Series
| Part | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Switch Function | Circuit | Overtravel | Overtravel | Voltage Rating - DC | Mounting Type | Differential Travel | Differential Travel | Voltage Rating - AC | Pretravel | Pretravel | Release Force | Operating Force | Mechanical Life | Operating Position | Operating Position | Current Rating (Amps) | Termination Style | Overtravel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Honeywell Sensing and Productivity Solutions | 100000 Cycles | 85 °C | -40 °C | Lever Simulated Roller | On-Mom | SPDT | 1.5 mm | 0.06 " | 125 VDC | Chassis Mount | 0.03 in | 0.76 mm | 125 V | 2.7 mm | 0.106 in | 9 gf | 90 gf | 10000000 Cycles | 0.73 in | 18.5 mm | 15 A 500 mA | Quick Connect - 0.250" (6.3mm) | |
Honeywell Sensing and Productivity Solutions | 100000 Cycles | 85 °C | -40 °C | Lever Straight | On-Mom | SPDT | 4.2 mm | 0.164 " | 125 VDC | Chassis Mount | 0.06 " | 1.5 mm | 125 V | 5.9 mm | 0.234 in | 10000000 Cycles | 0.6 in | 15.2 mm | 15 A 500 mA | Quick Connect - 0.187" (4.7mm) | |||
Honeywell Sensing and Productivity Solutions | 100000 Cycles | 85 °C | -40 °C | Lever Roller | On-Mom | SPDT | 0.76 mm | 0.03 in | 125 VDC | Chassis Mount | 0.12 " | 3.05 mm | 125 V | 1.2 mm | 0.047 in | 19 gf | 175 gf | 10000000 Cycles | 0.812 in | 20.6 mm | 15 A 500 mA | Quick Connect - 0.187" (4.7mm) | |
Honeywell Sensing and Productivity Solutions | 100000 Cycles | 85 °C | -40 °C | Round (Pin Plunger) | On-Mom | SPDT | 1.27 mm | 0.05 in | 125 VDC | Chassis Mount | 0.01 in | 0.25 mm | 125 V | 1.2 mm | 0.047 in | 25 gf | 150 gf | 10000000 Cycles | 0.579 in | 14.7 mm | 15 A 500 mA | Quick Connect - 0.187" (4.7mm) | |
Honeywell Sensing and Productivity Solutions | 100000 Cycles | 85 °C | -40 °C | Round (Pin Plunger) | On-Mom | SPDT | 1.27 mm | 0.05 in | 125 VDC | Chassis Mount | 0.01 in | 0.25 mm | 125 V | 1.2 mm | 0.047 in | 25 gf | 150 gf | 10000000 Cycles | 0.579 in | 14.7 mm | 15 A 500 mA | Quick Connect - 0.187" (4.7mm) | |
Honeywell Sensing and Productivity Solutions | 100000 Cycles | 85 °C | -40 °C | Lever Straight | On-Mom | SPDT | 2.3 mm | 0.09 in | 125 VDC | Chassis Mount | 0.03 in | 0.76 mm | 125 V | 2.8 mm | 0.11 in | 8 gf | 80 gf | 10000000 Cycles | 0.6 in | 15.2 mm | 15 A 500 mA | Quick Connect - 0.187" (4.7mm) | |
Honeywell Sensing and Productivity Solutions | 100000 Cycles | 85 °C | -40 °C | Lever Roller | On-Mom | SPDT | 1.5 mm | 0.06 " | 125 VDC | Chassis Mount | 0.025 in | 0.6 mm | 125 V | 2.9 mm | 0.114 in | 9 gf | 90 gf | 10000000 Cycles | 0.812 in | 20.6 mm | 15 A 500 mA | Quick Connect - 0.187" (4.7mm) | |
Honeywell Sensing and Productivity Solutions | 100000 Cycles | 85 °C | -40 °C | Lever Simulated Roller | On-Mom | SPDT | 0.068 " | 125 VDC | Chassis Mount | 0.027 " | 0.7 mm | 125 V | 3 mm | 0.12 in | 9 gf | 86 gf | 10000000 Cycles | 15 A 500 mA | Quick Connect - 0.187" (4.7mm) | 1.73 mm |
