V7-1C17D8-294

Active

Honeywell Sensing and Productivity Solutions

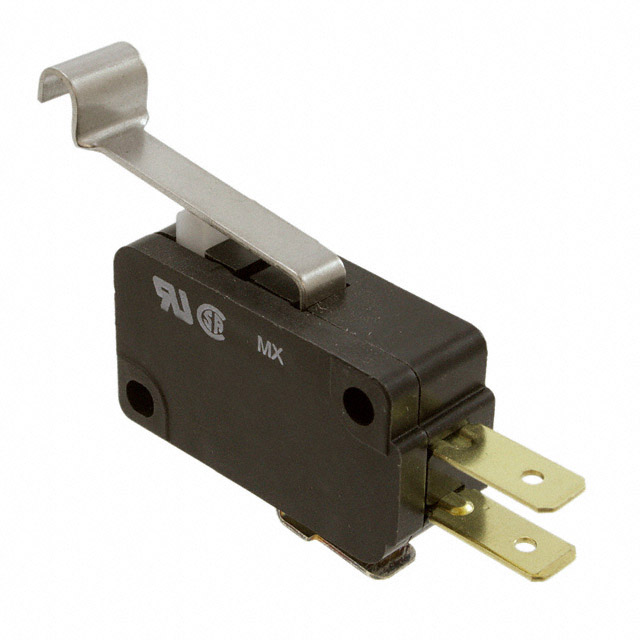

SWITCH SNAP ACTION SPDT 15A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsV7 Series Basic Switches Catalog V7 Series Part Number Breakdown +1

V7-1C17D8-294

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 15A 125V

Deep-Dive with AI

DocumentsV7 Series Basic Switches Catalog V7 Series Part Number Breakdown +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V7-1C17D8-294

Actuator Type	Simulated Roller, Lever
Circuit	SPDT
Current Rating (Amps)	500 mA, 15 A
Differential Travel	0.027 "
Differential Travel	0.7 mm
Electrical Life	100000 Cycles
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	86 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.068 "
Overtravel	1.73 mm
Pretravel	0.12 in
Pretravel	3 mm
Release Force	9 gf
Switch Function	On-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	125 VDC

V7-1C1 Series

Part	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Switch Function	Circuit	Overtravel	Overtravel	Voltage Rating - DC	Mounting Type	Differential Travel	Differential Travel	Voltage Rating - AC	Pretravel	Pretravel	Release Force	Operating Force	Mechanical Life	Operating Position	Operating Position	Current Rating (Amps)	Termination Style	Overtravel
Honeywell Sensing and Productivity Solutions V7-1C17E9-292	100000 Cycles	85 °C	-40 °C	Lever Simulated Roller	On-Mom	SPDT	1.5 mm	0.06 "	125 VDC	Chassis Mount	0.03 in	0.76 mm	125 V	2.7 mm	0.106 in	9 gf	90 gf	10000000 Cycles	0.73 in	18.5 mm	15 A 500 mA	Quick Connect - 0.250" (6.3mm)
Honeywell Sensing and Productivity Solutions V7-1C17D8-048	100000 Cycles	85 °C	-40 °C	Lever Straight	On-Mom	SPDT	4.2 mm	0.164 "	125 VDC	Chassis Mount	0.06 "	1.5 mm	125 V	5.9 mm	0.234 in			10000000 Cycles	0.6 in	15.2 mm	15 A 500 mA	Quick Connect - 0.187" (4.7mm)
Honeywell Sensing and Productivity Solutions V7-1C17D8-201	100000 Cycles	85 °C	-40 °C	Lever Roller	On-Mom	SPDT	0.76 mm	0.03 in	125 VDC	Chassis Mount	0.12 "	3.05 mm	125 V	1.2 mm	0.047 in	19 gf	175 gf	10000000 Cycles	0.812 in	20.6 mm	15 A 500 mA	Quick Connect - 0.187" (4.7mm)
Honeywell Sensing and Productivity Solutions V7-1C18D8	100000 Cycles	85 °C	-40 °C	Round (Pin Plunger)	On-Mom	SPDT	1.27 mm	0.05 in	125 VDC	Chassis Mount	0.01 in	0.25 mm	125 V	1.2 mm	0.047 in	25 gf	150 gf	10000000 Cycles	0.579 in	14.7 mm	15 A 500 mA	Quick Connect - 0.187" (4.7mm)
Honeywell Sensing and Productivity Solutions V7-1C17D8	100000 Cycles	85 °C	-40 °C	Round (Pin Plunger)	On-Mom	SPDT	1.27 mm	0.05 in	125 VDC	Chassis Mount	0.01 in	0.25 mm	125 V	1.2 mm	0.047 in	25 gf	150 gf	10000000 Cycles	0.579 in	14.7 mm	15 A 500 mA	Quick Connect - 0.187" (4.7mm)
Honeywell Sensing and Productivity Solutions V7-1C17D8-022	100000 Cycles	85 °C	-40 °C	Lever Straight	On-Mom	SPDT	2.3 mm	0.09 in	125 VDC	Chassis Mount	0.03 in	0.76 mm	125 V	2.8 mm	0.11 in	8 gf	80 gf	10000000 Cycles	0.6 in	15.2 mm	15 A 500 mA	Quick Connect - 0.187" (4.7mm)
Honeywell Sensing and Productivity Solutions V7-1C17D8-207	100000 Cycles	85 °C	-40 °C	Lever Roller	On-Mom	SPDT	1.5 mm	0.06 "	125 VDC	Chassis Mount	0.025 in	0.6 mm	125 V	2.9 mm	0.114 in	9 gf	90 gf	10000000 Cycles	0.812 in	20.6 mm	15 A 500 mA	Quick Connect - 0.187" (4.7mm)
Honeywell Sensing and Productivity Solutions V7-1C17D8-294	100000 Cycles	85 °C	-40 °C	Lever Simulated Roller	On-Mom	SPDT	0.068 "		125 VDC	Chassis Mount	0.027 "	0.7 mm	125 V	3 mm	0.12 in	9 gf	86 gf	10000000 Cycles			15 A 500 mA	Quick Connect - 0.187" (4.7mm)	1.73 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 4.28

Description

General part information

V7-1C1 Series

Switch SPDT Chassis Mount

Documents

Technical documentation and resources

V7 Series Basic Switches Catalog

Datasheet

V7 Series Part Number Breakdown

Datasheet
