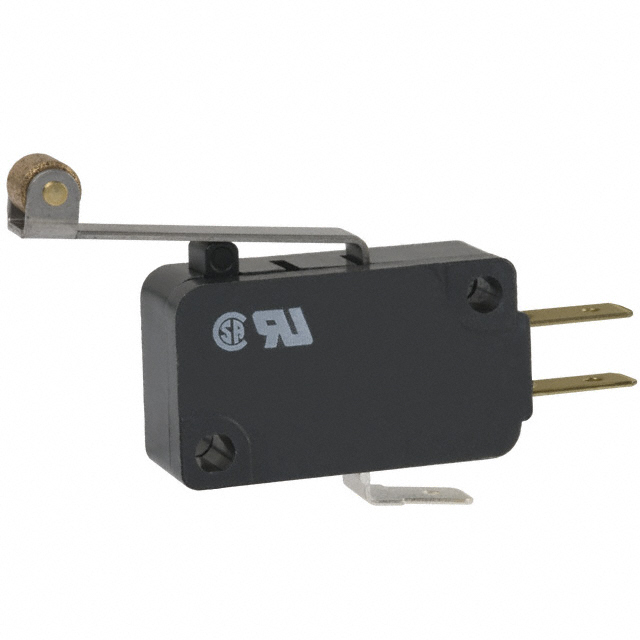

V7-1C17D8-207

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 15A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBasic, Toggle, Rocker Switches Range Guide Datasheet +1

V7-1C17D8-207

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 15A 125V

Deep-Dive with AI

DocumentsBasic, Toggle, Rocker Switches Range Guide Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V7-1C17D8-207

Actuator Type	Roller, Lever
Circuit	SPDT
Current Rating (Amps)	500 mA, 15 A
Differential Travel	0.6 mm
Differential Travel	0.025 in
Electrical Life	100000 Cycles
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	90 gf
Operating Position	0.812 in
Operating Position	20.6 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	1.5 mm
Overtravel	0.06 "
Pretravel	0.114 in
Pretravel	2.9 mm
Release Force	9 gf
Switch Function	On-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	125 VDC

V7-1C1 Series

Part	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Switch Function	Circuit	Overtravel	Overtravel	Voltage Rating - DC	Mounting Type	Differential Travel	Differential Travel	Voltage Rating - AC	Pretravel	Pretravel	Release Force	Operating Force	Mechanical Life	Operating Position	Operating Position	Current Rating (Amps)	Termination Style	Overtravel
Honeywell Sensing and Productivity Solutions V7-1C17E9-292	100000 Cycles	85 °C	-40 °C	Lever Simulated Roller	On-Mom	SPDT	1.5 mm	0.06 "	125 VDC	Chassis Mount	0.03 in	0.76 mm	125 V	2.7 mm	0.106 in	9 gf	90 gf	10000000 Cycles	0.73 in	18.5 mm	15 A 500 mA	Quick Connect - 0.250" (6.3mm)
Honeywell Sensing and Productivity Solutions V7-1C17D8-048	100000 Cycles	85 °C	-40 °C	Lever Straight	On-Mom	SPDT	4.2 mm	0.164 "	125 VDC	Chassis Mount	0.06 "	1.5 mm	125 V	5.9 mm	0.234 in			10000000 Cycles	0.6 in	15.2 mm	15 A 500 mA	Quick Connect - 0.187" (4.7mm)
Honeywell Sensing and Productivity Solutions V7-1C17D8-201	100000 Cycles	85 °C	-40 °C	Lever Roller	On-Mom	SPDT	0.76 mm	0.03 in	125 VDC	Chassis Mount	0.12 "	3.05 mm	125 V	1.2 mm	0.047 in	19 gf	175 gf	10000000 Cycles	0.812 in	20.6 mm	15 A 500 mA	Quick Connect - 0.187" (4.7mm)
Honeywell Sensing and Productivity Solutions V7-1C18D8	100000 Cycles	85 °C	-40 °C	Round (Pin Plunger)	On-Mom	SPDT	1.27 mm	0.05 in	125 VDC	Chassis Mount	0.01 in	0.25 mm	125 V	1.2 mm	0.047 in	25 gf	150 gf	10000000 Cycles	0.579 in	14.7 mm	15 A 500 mA	Quick Connect - 0.187" (4.7mm)
Honeywell Sensing and Productivity Solutions V7-1C17D8	100000 Cycles	85 °C	-40 °C	Round (Pin Plunger)	On-Mom	SPDT	1.27 mm	0.05 in	125 VDC	Chassis Mount	0.01 in	0.25 mm	125 V	1.2 mm	0.047 in	25 gf	150 gf	10000000 Cycles	0.579 in	14.7 mm	15 A 500 mA	Quick Connect - 0.187" (4.7mm)
Honeywell Sensing and Productivity Solutions V7-1C17D8-022	100000 Cycles	85 °C	-40 °C	Lever Straight	On-Mom	SPDT	2.3 mm	0.09 in	125 VDC	Chassis Mount	0.03 in	0.76 mm	125 V	2.8 mm	0.11 in	8 gf	80 gf	10000000 Cycles	0.6 in	15.2 mm	15 A 500 mA	Quick Connect - 0.187" (4.7mm)
Honeywell Sensing and Productivity Solutions V7-1C17D8-207	100000 Cycles	85 °C	-40 °C	Lever Roller	On-Mom	SPDT	1.5 mm	0.06 "	125 VDC	Chassis Mount	0.025 in	0.6 mm	125 V	2.9 mm	0.114 in	9 gf	90 gf	10000000 Cycles	0.812 in	20.6 mm	15 A 500 mA	Quick Connect - 0.187" (4.7mm)
Honeywell Sensing and Productivity Solutions V7-1C17D8-294	100000 Cycles	85 °C	-40 °C	Lever Simulated Roller	On-Mom	SPDT	0.068 "		125 VDC	Chassis Mount	0.027 "	0.7 mm	125 V	3 mm	0.12 in	9 gf	86 gf	10000000 Cycles			15 A 500 mA	Quick Connect - 0.187" (4.7mm)	1.73 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.98
		10	$ 4.12
		25	$ 3.83
		50	$ 3.62
		100	$ 3.42
		250	$ 3.17
		500	$ 3.00
		1000	$ 2.83

Description

General part information

V7-1C1 Series

Switch SPDT Chassis Mount

Documents

Technical documentation and resources

Basic, Toggle, Rocker Switches Range Guide

Datasheet

V7 Series Basic Switches Catalog

Datasheet
