UB225KKG015F

Active

NKK Switches

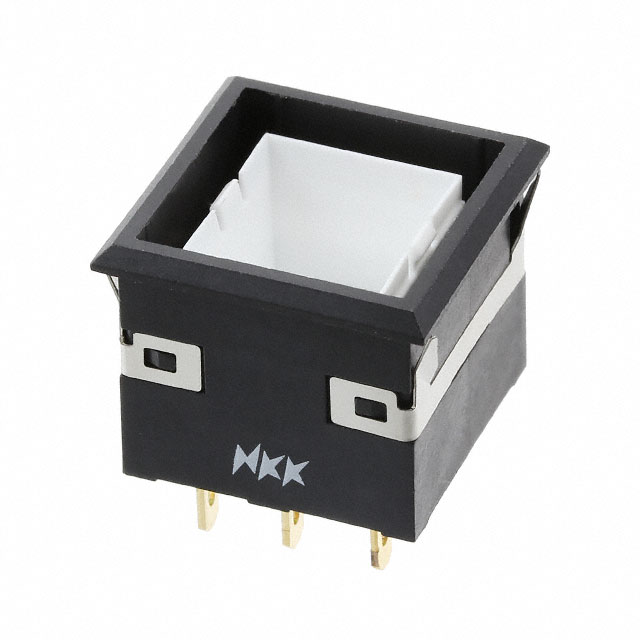

SWITCH: PUSH-BUTTON; POS: 2; DPDT; 0.1A/28VAC; 0.1A/28VDC; ON-(ON)

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet UB2 Indicators

UB225KKG015F

Active

NKK Switches

SWITCH: PUSH-BUTTON; POS: 2; DPDT; 0.1A/28VAC; 0.1A/28VDC; ON-(ON)

Deep-Dive with AI

DocumentsDatasheet UB2 Indicators

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UB225KKG015F

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	DPDT
Current Rating (Amps)	0.4 VA
Electrical Life	200000 Cycles
Features	Sealed - Fully
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2.1 VDC
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	17.4 mm
Panel Cutout Dimensions [y]	17.4 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

UB215SK Series

Part	Current Rating (Amps)	Circuit	Illumination Voltage (Nominal)	Type	Color - Actuator/Cap	Voltage Rating - AC	Actuator Type	Mounting Type	Actuator Marking	Electrical Life	Illumination Type, Color	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Voltage Rating - DC	Termination Style	Switch Function	Features	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
NKK Switches UB215SKG036CF-4JCF13	0.4 VA	SPDT	2.1 VDC 3.5 VDC	Illuminated Standard	Clear	28 V	Alternating Legend Button Square	Through Hole	START/STOP (Alternating)	200000 Cycles	Green/Red LED	50 °C	-25 °C	1000000 Cycles	28 V	PC Pin	On-Mom
NKK Switches UB215SKW035D-1JB	5 A	SPDT	2 VDC	Illuminated Standard	Clear	125 V	Button Square	Through Hole	No Marking	10000 Cycles	Amber LED	50 °C	-25 °C	1000000 Cycles	30 V	PC Pin	On-Mom	Sealed - Fully
NKK Switches UB215KKW01N	5 A	SPDT		Standard		125 V	Plunger for Cap	Panel Mount Snap-In	No Marking	10000 Cycles		70 °C	-25 °C	1000000 Cycles	30 V	Solder Lug	On-Mom	RTV Adhesive Sealant on Terminals	17.4 mm	17.4 mm
NKK Switches UB226SKG035F	0.4 VA	DPDT	2.1 VDC	Illuminated Standard		28 V	Plunger for Cap	Through Hole	No Marking	200000 Cycles	Green LED	50 °C	-25 °C	200000 Cycles	28 V	PC Pin	On-On	Sealed - Fully
NKK Switches UB215SKW036CF-3JB	5 A	SPDT	2.1 VDC 3.5 VDC	Illuminated Standard	Clear	125 V	Button Square	Through Hole	No Marking	10000 Cycles	Green/Red LED	50 °C	-25 °C	1000000 Cycles	30 V	PC Pin	On-Mom	Sealed - Fully
NKK Switches UB215SKW035D-3JD	5 A	SPDT	2 VDC	Illuminated Standard	Clear	125 V	Button Square	Through Hole	No Marking	10000 Cycles	Amber LED	50 °C	-25 °C	1000000 Cycles	30 V	PC Pin	On-Mom	Sealed - Fully
NKK Switches UB215SKW036CF-2B	5 A	SPDT	2.1 VDC 3.5 VDC	Illuminated Standard	White	125 V	Button Square	Through Hole	No Marking	10000 Cycles	Green/Red LED	50 °C	-25 °C	1000000 Cycles	30 V	PC Pin	On-Mom	Sealed - Fully
NKK Switches UB215KKW015D	5 A	SPDT	2 VDC	Illuminated Standard		125 V	Plunger for Cap	Panel Mount Snap-In	No Marking	10000 Cycles	Amber LED	50 °C	-25 °C	1000000 Cycles	30 V	Solder Lug	On-Mom	Epoxy Sealed Terminals	17.4 mm	17.4 mm
NKK Switches UB215SKG035F-1JF	0.4 VA	SPDT	2.1 VDC	Illuminated Standard	Clear	28 V	Button Square	Through Hole	No Marking	200000 Cycles	Green LED	50 °C	-25 °C	1000000 Cycles	28 V	PC Pin	On-Mom	Sealed
NKK Switches UB215SKW035C-1JB	5 A	SPDT	1.85 VDC	Illuminated Standard	Clear	125 V	Button Square	Through Hole	No Marking	10000 Cycles	LED Red	50 °C	-25 °C	1000000 Cycles	30 V	PC Pin	On-Mom	Sealed - Fully

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.76
		10	$ 17.05
		25	$ 16.08
		50	$ 15.38
		100	$ 14.71
		250	$ 13.86
		500	$ 13.25
Newark	Each	1	$ 29.45
		5	$ 27.97
		10	$ 25.93
		25	$ 23.65
		50	$ 20.47
		100	$ 19.11
		250	$ 17.40
TME	N/A	1	$ 19.26
		10	$ 18.39
		100	$ 16.59

Description

General part information

UB215SK Series

Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Snap-In

Documents

Technical documentation and resources

Datasheet

UB2 Indicators
