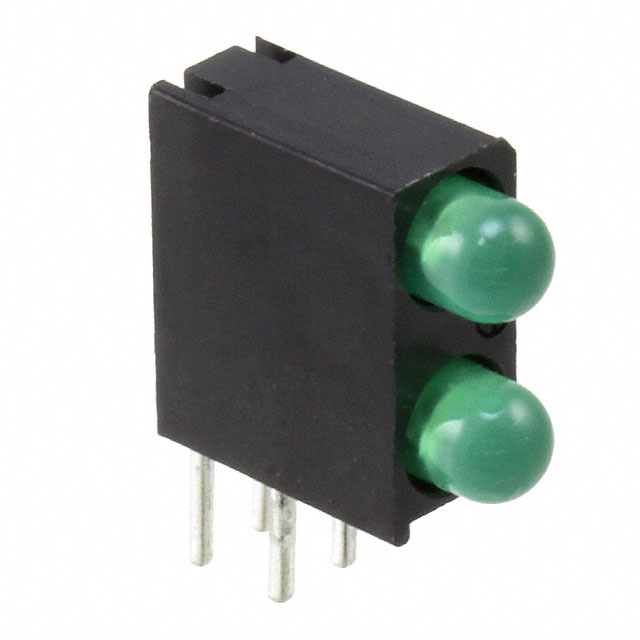

5530122010F
ActiveDIALIGHT
LED CBI 3MM BI-LVL GREEN RA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5530122010F
ActiveDIALIGHT
LED CBI 3MM BI-LVL GREEN RA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5530122010F |
|---|---|
| Color | Green (x 2) |
| Configuration | 2 High |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Type | Tinted, Diffused |
| Millicandela Rating | 16 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 45 ° |
| Voltage Rating | 2.1 V |
| Wavelength - Peak | 563 nm |
5530122 Series
| Part | Color | Current | Millicandela Rating | Voltage Rating | Lens Type | Configuration | Lens Size [diameter] | Wavelength - Peak | Lens Style | Mounting Type | Viewing Angle | Lens Size | Lens Size | Configuration [y] | Configuration [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DIALIGHT | Green (x 2) | 10 mA | 16 mcd | 2.1 V | Diffused Tinted | 2 High | 3 mm | 563 nm | Round with Domed Top | Through Hole Right Angle | |||||
DIALIGHT | Green (x 2) | 10 mA | 16 mcd | 2.1 V | Diffused Tinted | 2 High | 563 nm | Round with Domed Top | Through Hole Right Angle | 45 ° | 3 mm | T-1 | |||
DIALIGHT | Green (x 2) | 16 mcd | 2.1 V | Diffused Tinted | 2 High | 563 nm | Round with Domed Top | Through Hole Right Angle | 45 ° | 3 mm | T-1 | ||||
DIALIGHT | Green (x 4) | 16 mcd | 2.1 V | Diffused Tinted | 3 mm | 563 nm | Round with Domed Top | Through Hole Right Angle | 45 ° | 2 | 2 | ||||
DIALIGHT | Green (x 8) | 16 mcd | 2.1 V | Diffused Tinted | 563 nm | Through Hole Right Angle | 45 ° | 4 | 2 | ||||||
DIALIGHT | Green (x 2) | 10 mA | 16 mcd | 2.1 V | Diffused Tinted | 2 High | 563 nm | Round with Domed Top | Through Hole Right Angle | 45 ° | 3 mm | T-1 | |||
DIALIGHT | Green (x 2) | 10 mA | 16 mcd | 2.1 V | Diffused Tinted | 2 High | 3 mm | 563 nm | Round with Domed Top | Through Hole Right Angle | |||||
DIALIGHT | Round with Domed Top | Through Hole Right Angle | 3 mm | T-1 | |||||||||||
DIALIGHT | Green (x 2) | 16 mcd | 2.1 V | Diffused Tinted | 2 High | 563 nm | Round with Domed Top | Through Hole Right Angle | 45 ° | 3 mm | T-1 | ||||
DIALIGHT | Green (x 2) | 16 mcd | 2.1 V | Diffused Tinted | 2 High | 563 nm | Round with Domed Top | Through Hole Right Angle | 45 ° | 3 mm | T-1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.48 | |
| 10 | $ 1.62 | |||
| 100 | $ 1.18 | |||
| 500 | $ 1.01 | |||
| 1000 | $ 0.96 | |||
| 2000 | $ 0.91 | |||
| 5000 | $ 0.87 | |||
| 10000 | $ 0.84 | |||
Description
General part information
5530122 Series
LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green (x 2) Diffused, Tinted 2.1V 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
