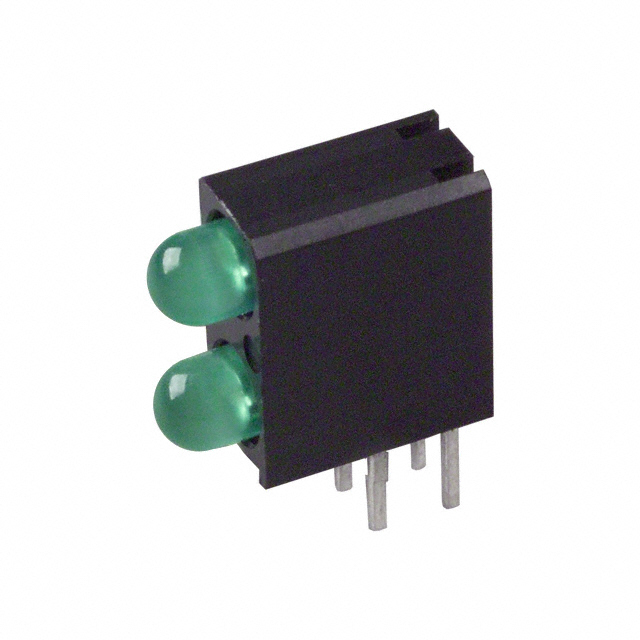

5530122F

Active

DIALIGHT

LED CBI 3MM BI-LVL GRN RA PCMNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet CBI Through Hole Selector Guide

5530122F

Active

DIALIGHT

LED CBI 3MM BI-LVL GRN RA PCMNT

Deep-Dive with AI

DocumentsDatasheet CBI Through Hole Selector Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5530122F

Color	Green (x 2)
Configuration	2 High
Current	10 mA
Lens Size	3 mm
Lens Size	T-1
Lens Style	Round with Domed Top
Lens Type	Tinted, Diffused
Millicandela Rating	16 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	45 °
Voltage Rating	2.1 V
Wavelength - Peak	563 nm

5530122 Series

Part	Color	Current	Millicandela Rating	Voltage Rating	Lens Type	Configuration	Lens Size [diameter]	Wavelength - Peak	Lens Style	Mounting Type	Viewing Angle	Lens Size	Lens Size	Configuration [y]	Configuration [z]
DIALIGHT 5530122817F	Green (x 2)	10 mA	16 mcd	2.1 V	Diffused Tinted	2 High	3 mm	563 nm	Round with Domed Top	Through Hole Right Angle
DIALIGHT 5530122300F	Green (x 2)	10 mA	16 mcd	2.1 V	Diffused Tinted	2 High		563 nm	Round with Domed Top	Through Hole Right Angle	45 °	3 mm	T-1
DIALIGHT 5530122006F	Green (x 2)		16 mcd	2.1 V	Diffused Tinted	2 High		563 nm	Round with Domed Top	Through Hole Right Angle	45 °	3 mm	T-1
DIALIGHT 5530122002F	Green (x 4)		16 mcd	2.1 V	Diffused Tinted		3 mm	563 nm	Round with Domed Top	Through Hole Right Angle	45 °			2	2
DIALIGHT 5530122004F	Green (x 8)		16 mcd	2.1 V	Diffused Tinted			563 nm		Through Hole Right Angle	45 °			4	2
DIALIGHT 5530122F	Green (x 2)	10 mA	16 mcd	2.1 V	Diffused Tinted	2 High		563 nm	Round with Domed Top	Through Hole Right Angle	45 °	3 mm	T-1
DIALIGHT 5530122818F	Green (x 2)	10 mA	16 mcd	2.1 V	Diffused Tinted	2 High	3 mm	563 nm	Round with Domed Top	Through Hole Right Angle
DIALIGHT 5530122811F									Round with Domed Top	Through Hole Right Angle		3 mm	T-1
DIALIGHT 5530122010F	Green (x 2)		16 mcd	2.1 V	Diffused Tinted	2 High		563 nm	Round with Domed Top	Through Hole Right Angle	45 °	3 mm	T-1
DIALIGHT 5530122303F	Green (x 2)		16 mcd	2.1 V	Diffused Tinted	2 High		563 nm	Round with Domed Top	Through Hole Right Angle	45 °	3 mm	T-1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.28
		10	$ 1.48
		100	$ 1.07
		500	$ 0.91
		1000	$ 0.86
		2000	$ 0.82
		5000	$ 0.78
		10000	$ 0.75

Description

General part information

5530122 Series

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green (x 2) Diffused, Tinted 2.1V 10mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
