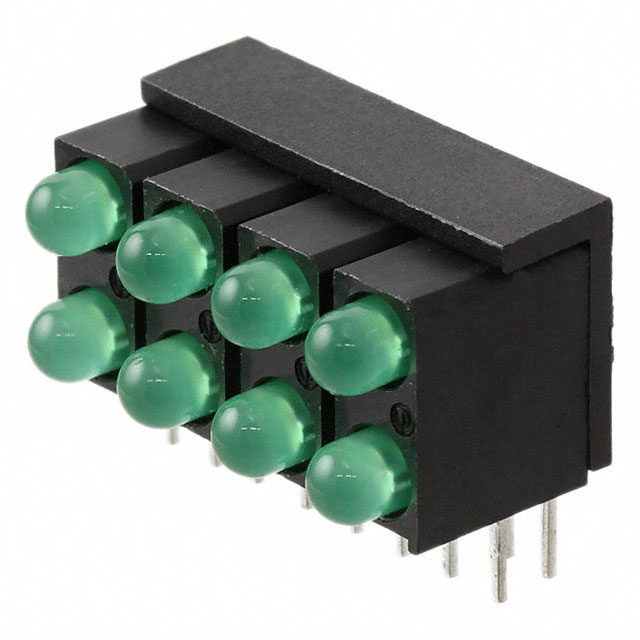

5530122004F

Active

DIALIGHT

LED CBI 3MM 2X4 GRN RA

Search across all available documentation for this part.

Active

DIALIGHT

LED CBI 3MM 2X4 GRN RA

Technical Specifications

Parameters and characteristics for this part

Part	Color	Current	Millicandela Rating	Voltage Rating	Lens Type	Configuration	Lens Size [diameter]	Wavelength - Peak	Lens Style	Mounting Type	Viewing Angle	Lens Size	Lens Size	Configuration [y]	Configuration [z]
DIALIGHT 5530122817F	Green (x 2)	10 mA	16 mcd	2.1 V	Diffused Tinted	2 High	3 mm	563 nm	Round with Domed Top	Through Hole Right Angle
DIALIGHT 5530122300F	Green (x 2)	10 mA	16 mcd	2.1 V	Diffused Tinted	2 High		563 nm	Round with Domed Top	Through Hole Right Angle	45 °	3 mm	T-1
DIALIGHT 5530122006F	Green (x 2)		16 mcd	2.1 V	Diffused Tinted	2 High		563 nm	Round with Domed Top	Through Hole Right Angle	45 °	3 mm	T-1
DIALIGHT 5530122002F	Green (x 4)		16 mcd	2.1 V	Diffused Tinted		3 mm	563 nm	Round with Domed Top	Through Hole Right Angle	45 °			2	2
DIALIGHT 5530122004F	Green (x 8)		16 mcd	2.1 V	Diffused Tinted			563 nm		Through Hole Right Angle	45 °			4	2
DIALIGHT 5530122F	Green (x 2)	10 mA	16 mcd	2.1 V	Diffused Tinted	2 High		563 nm	Round with Domed Top	Through Hole Right Angle	45 °	3 mm	T-1
DIALIGHT 5530122818F	Green (x 2)	10 mA	16 mcd	2.1 V	Diffused Tinted	2 High	3 mm	563 nm	Round with Domed Top	Through Hole Right Angle
DIALIGHT 5530122811F									Round with Domed Top	Through Hole Right Angle		3 mm	T-1
DIALIGHT 5530122010F	Green (x 2)		16 mcd	2.1 V	Diffused Tinted	2 High		563 nm	Round with Domed Top	Through Hole Right Angle	45 °	3 mm	T-1
DIALIGHT 5530122303F	Green (x 2)		16 mcd	2.1 V	Diffused Tinted	2 High		563 nm	Round with Domed Top	Through Hole Right Angle	45 °	3 mm	T-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Circuit Board Indicator LED Circuit Board Indicator 2 High x 4 Wide Green (x 8) Diffused, Tinted 2.1V 20mA Through Hole, Right Angle
