281-512/281-501

Active

WAGO Corporation

CONNECTOR ACCESSORY, FUSE PLUG, 280 AND 281 SERIES CARRIER TERMINAL BLOCKS, 5X20MM & 5X25MM FUSES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

281-512/281-501

Active

WAGO Corporation

CONNECTOR ACCESSORY, FUSE PLUG, 280 AND 281 SERIES CARRIER TERMINAL BLOCKS, 5X20MM & 5X25MM FUSES

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	281-512/281-501

Color	Gray
For Use With/Related Products	Din Rail Terminal Blocks
Type	Fuse Plug

281 Series

Part	Terminal - Width [y]	Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Current - IEC	Stripping Length [Max]	Stripping Length [Min]	Termination Style	Number of Positions	Material - Insulation	Voltage - IEC	Number of Levels	Color	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	For Use With/Related Products	Fuse Type [x]	Fuse Type [y]	Disconnect Type	Features
WAGO Corporation 281-901	6 mm	Feed Through	28 AWG	12 AWG	32 A	10 mm	9 mm	Push In Spring	2	Polyamide (PA66) Nylon 6/6	800 V	1	Gray	4 mm²	0.08 mm²
WAGO Corporation 281-631	6 mm	Feed Through	28 AWG	12 AWG	32 A	10 mm	9 mm	Push In Spring		Polyamide (PA66) Nylon 6/6	800 V	1	Gray	4 mm²	0.08 mm²
WAGO Corporation 281-311		End Plate											Gray			Terminal Blocks
WAGO Corporation 281-657	6 mm	Ground Earth	28 AWG	12 AWG		10 mm	9 mm	Push In Spring	4	Polyamide (PA66) Nylon 6/6		1	Green Yellow	4 mm²	0.08 mm²
WAGO Corporation 281-324		End Plate											Gray			Terminal Blocks
WAGO Corporation 281-309		End Plate														Terminal Blocks
WAGO Corporation 281-512/281-501		Fuse Plug											Gray			Din Rail Terminal Blocks
WAGO Corporation 281-607	6 mm	Ground Earth	28 AWG	12 AWG		10 mm	9 mm	Push In Spring	2	Polyamide (PA66) Nylon 6/6		1	Green Yellow	4 mm²	0.08 mm²
WAGO Corporation 281-623	10 mm	Disconnect	28 AWG	12 AWG	10 A	10 mm	9 mm	Push In Spring	2	Polyamide (PA66) Nylon 6/6	800 V	1	Gray	4 mm²	0.08 mm²			0.25 in	Fuse
WAGO Corporation 281-611/281-418	8 mm	Disconnect	28 AWG	12 AWG	10 A	10 mm	9 mm	Push In Spring	2	Polyamide (PA66) Nylon 6/6	800 V	1	Gray	4 mm²	0.08 mm²		5 mm	20 mm	Fuse	Neon Lamp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 0.87
Digikey	Bulk	1	$ 26.47
		10	$ 23.18
		25	$ 22.18
		50	$ 21.46
		100	$ 20.75
		250	$ 19.60
		500	$ 19.03
Newark	Each	1	$ 33.99
		25	$ 32.24
		100	$ 30.34
		250	$ 28.59
		500	$ 26.55

Description

General part information

281 Series

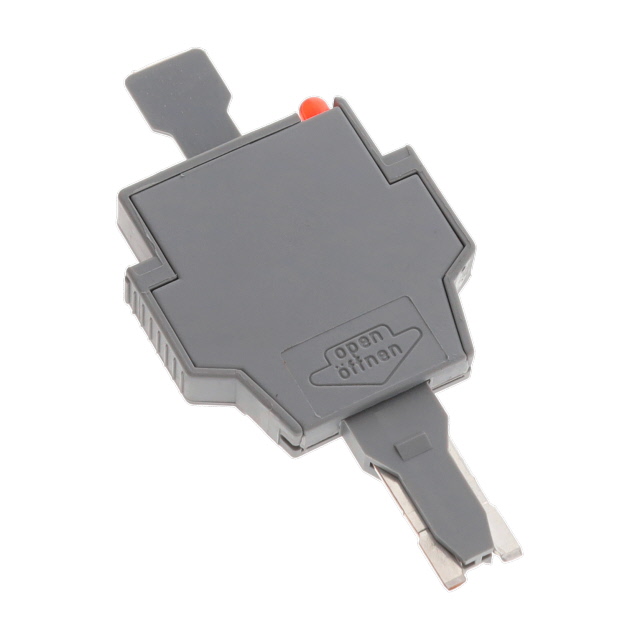

The 281-512/281-501 is a gray Fuse Plug with pull-tab and LED. It is suitable for use with the miniature metric fuses. It is made with the polyamide 66 (PA 66) insulator.
