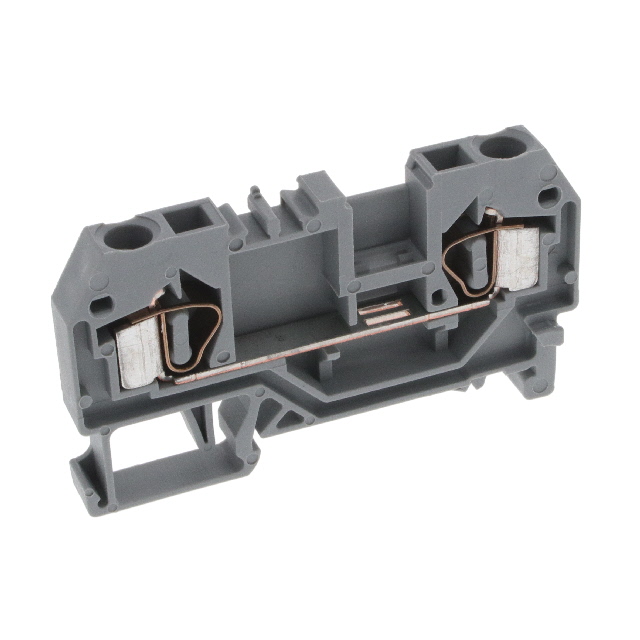

281-901

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 28 AWG, 12 AWG, 4 MM², CLAMP, 32 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Disclaimer EN

281-901

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 28 AWG, 12 AWG, 4 MM², CLAMP, 32 A

Deep-Dive with AI

DocumentsDatasheet Disclaimer EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	281-901

Color	Gray
Current - IEC	32 A
Material - Insulation	Polyamide (PA66), Nylon 6/6
Number of Levels	1
Number of Positions	2
Stripping Length [Max]	10 mm
Stripping Length [Min]	9 mm
Terminal - Width [y]	6 mm
Termination Style	Push In, Spring
Type	Feed Through
Voltage - IEC	800 V
Wire Gauge or Range - AWG [Max]	28 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm² [Max]	4 mm²
Wire Gauge or Range - mm² [Min]	0.08 mm²

281 Series

Part	Terminal - Width [y]	Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Current - IEC	Stripping Length [Max]	Stripping Length [Min]	Termination Style	Number of Positions	Material - Insulation	Voltage - IEC	Number of Levels	Color	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	For Use With/Related Products	Fuse Type [x]	Fuse Type [y]	Disconnect Type	Features
WAGO Corporation 281-901	6 mm	Feed Through	28 AWG	12 AWG	32 A	10 mm	9 mm	Push In Spring	2	Polyamide (PA66) Nylon 6/6	800 V	1	Gray	4 mm²	0.08 mm²
WAGO Corporation 281-631	6 mm	Feed Through	28 AWG	12 AWG	32 A	10 mm	9 mm	Push In Spring		Polyamide (PA66) Nylon 6/6	800 V	1	Gray	4 mm²	0.08 mm²
WAGO Corporation 281-311		End Plate											Gray			Terminal Blocks
WAGO Corporation 281-657	6 mm	Ground Earth	28 AWG	12 AWG		10 mm	9 mm	Push In Spring	4	Polyamide (PA66) Nylon 6/6		1	Green Yellow	4 mm²	0.08 mm²
WAGO Corporation 281-324		End Plate											Gray			Terminal Blocks
WAGO Corporation 281-309		End Plate														Terminal Blocks
WAGO Corporation 281-512/281-501		Fuse Plug											Gray			Din Rail Terminal Blocks
WAGO Corporation 281-607	6 mm	Ground Earth	28 AWG	12 AWG		10 mm	9 mm	Push In Spring	2	Polyamide (PA66) Nylon 6/6		1	Green Yellow	4 mm²	0.08 mm²
WAGO Corporation 281-623	10 mm	Disconnect	28 AWG	12 AWG	10 A	10 mm	9 mm	Push In Spring	2	Polyamide (PA66) Nylon 6/6	800 V	1	Gray	4 mm²	0.08 mm²			0.25 in	Fuse
WAGO Corporation 281-611/281-418	8 mm	Disconnect	28 AWG	12 AWG	10 A	10 mm	9 mm	Push In Spring	2	Polyamide (PA66) Nylon 6/6	800 V	1	Gray	4 mm²	0.08 mm²		5 mm	20 mm	Fuse	Neon Lamp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.86
		10	$ 2.58
		25	$ 2.33
		50	$ 2.19
		100	$ 2.09
		250	$ 1.99
		500	$ 1.94
		1000	$ 1.90
		5000	$ 1.84
Newark	Each	1	$ 3.80
		25	$ 3.62
		100	$ 3.39
		250	$ 3.21
		500	$ 2.96

Description

General part information

281 Series

The 281-901 is a 2-position 1-level through DIN rail Terminal Block with PA 6.6 (polyamide 6.6) insulator and grey colour. 4mm² cross-section, TS35 mounting, front-entry wiring, centre marking level, horizontal design, clamp wire connection method and 28 to 12AWG wire size.
