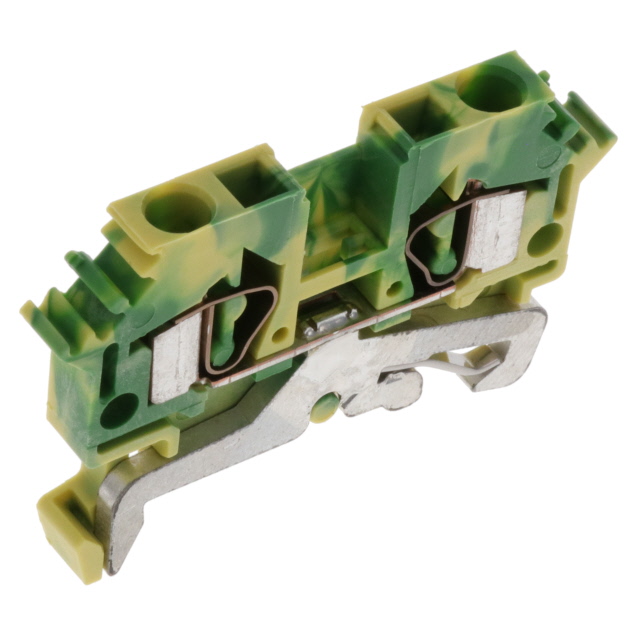

281-607

Active

WAGO Corporation

2-CONDUCTOR GROUND TERMINAL BLOC

Search across all available documentation for this part.

Active

WAGO Corporation

2-CONDUCTOR GROUND TERMINAL BLOC

Technical Specifications

Parameters and characteristics for this part

Part	Terminal - Width [y]	Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Current - IEC	Stripping Length [Max]	Stripping Length [Min]	Termination Style	Number of Positions	Material - Insulation	Voltage - IEC	Number of Levels	Color	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	For Use With/Related Products	Fuse Type [x]	Fuse Type [y]	Disconnect Type	Features
WAGO Corporation 281-901	6 mm	Feed Through	28 AWG	12 AWG	32 A	10 mm	9 mm	Push In Spring	2	Polyamide (PA66) Nylon 6/6	800 V	1	Gray	4 mm²	0.08 mm²
WAGO Corporation 281-631	6 mm	Feed Through	28 AWG	12 AWG	32 A	10 mm	9 mm	Push In Spring		Polyamide (PA66) Nylon 6/6	800 V	1	Gray	4 mm²	0.08 mm²
WAGO Corporation 281-311		End Plate											Gray			Terminal Blocks
WAGO Corporation 281-657	6 mm	Ground Earth	28 AWG	12 AWG		10 mm	9 mm	Push In Spring	4	Polyamide (PA66) Nylon 6/6		1	Green Yellow	4 mm²	0.08 mm²
WAGO Corporation 281-324		End Plate											Gray			Terminal Blocks
WAGO Corporation 281-309		End Plate														Terminal Blocks
WAGO Corporation 281-512/281-501		Fuse Plug											Gray			Din Rail Terminal Blocks
WAGO Corporation 281-607	6 mm	Ground Earth	28 AWG	12 AWG		10 mm	9 mm	Push In Spring	2	Polyamide (PA66) Nylon 6/6		1	Green Yellow	4 mm²	0.08 mm²
WAGO Corporation 281-623	10 mm	Disconnect	28 AWG	12 AWG	10 A	10 mm	9 mm	Push In Spring	2	Polyamide (PA66) Nylon 6/6	800 V	1	Gray	4 mm²	0.08 mm²			0.25 in	Fuse
WAGO Corporation 281-611/281-418	8 mm	Disconnect	28 AWG	12 AWG	10 A	10 mm	9 mm	Push In Spring	2	Polyamide (PA66) Nylon 6/6	800 V	1	Gray	4 mm²	0.08 mm²		5 mm	20 mm	Fuse	Neon Lamp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Block Connector 2 Position Ground, Earth Green, Yellow 12-28 AWG
