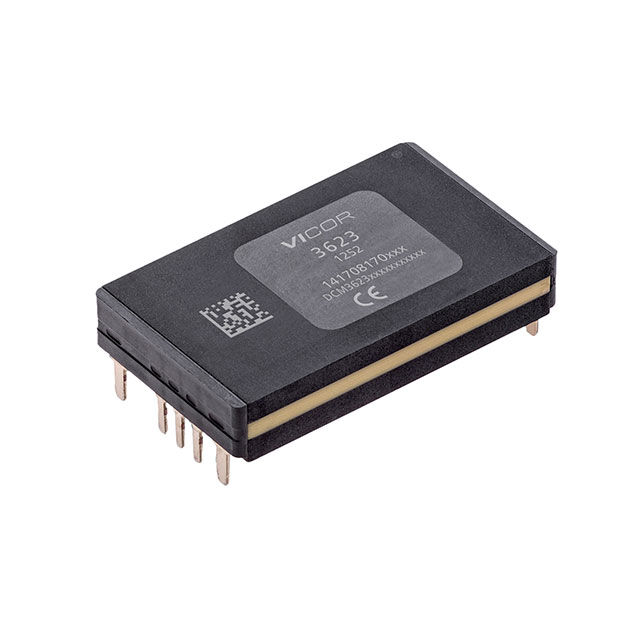

DCM24AP480T320A50

Active

Vicor Corporation

DC-DC REGULATED POWER SUPPLY MODULE, 1 OUTPUT, 320W, HYBRID, PACKAGE-9

Search across all available documentation for this part.

Active

Vicor Corporation

DC-DC REGULATED POWER SUPPLY MODULE, 1 OUTPUT, 320W, HYBRID, PACKAGE-9

Technical Specifications

Parameters and characteristics for this part

Specification	DCM24AP480T320A50

Applications	ITE (Commercial)
Current - Output (Max) [Max]	6.67 A
Efficiency	92.5 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	9-DIP Module
Power (Watts)	320 W
Size / Dimension [x]	1.52 in
Size / Dimension [x]	38.7 mm
Size / Dimension [y]	22.8 mm
Size / Dimension [y]	0.9 "
Size / Dimension [z]	7.3 mm
Size / Dimension [z]	0.29 "
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	48 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Input (Min) [Min]	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Features	Applications	Voltage - Isolation	Mounting Type	Power (Watts)	Type	Number of Outputs	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Efficiency
Vicor Corporation DCM24AP120M320A50	-55 °C	125 °C	9-DIP Module	18 V	12 V	7.3 mm	1.52 in	22.8 mm	0.29 "	38.7 mm	0.9 "	OCP OTP OVP SCP UVLO	ITE (Commercial)	2250 VDC	Through Hole	320 W	Isolated Module	1	26.67 A	36 V
Vicor Corporation DCM24AP480T320A50	-40 °C	125 °C	9-DIP Module	18 V	48 V	7.3 mm	1.52 in	22.8 mm	0.29 "	38.7 mm	0.9 "	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	2250 VDC	Through Hole	320 W	Isolated Module	1	6.67 A	36 V	92.5 %
Vicor Corporation DCM24AP050T180A50	-40 °C	125 °C	9-DIP Module	18 V	5 V	7.3 mm	1.52 in	22.8 mm	0.29 "	38.7 mm	0.9 "	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	2250 VDC	Through Hole	180 W	Isolated Module	1	36 A	36 V	91.9 %
Vicor Corporation DCM24AP150T320A50	-40 °C	125 °C	9-DIP Module	18 V	15 V	7.3 mm	1.52 in	22.8 mm	0.29 "	38.7 mm	0.9 "	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	2250 VDC	Through Hole	320 W	Isolated Module	1	21.4 A	36 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 48V 6.67A 18V - 36V Input
