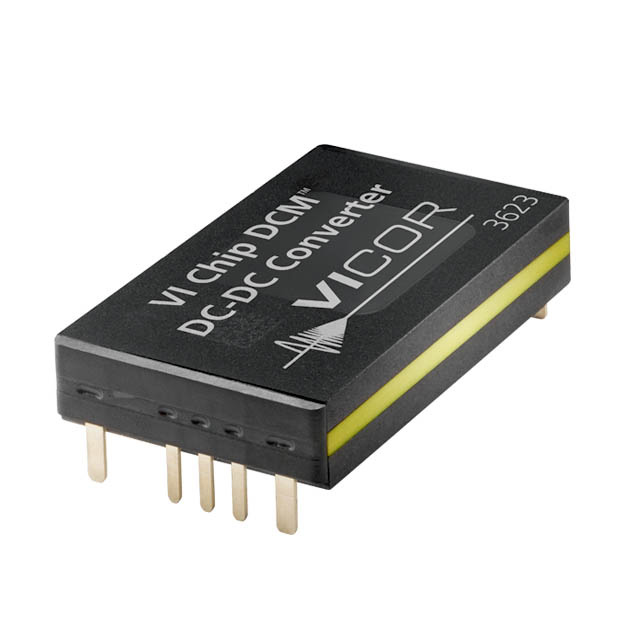

DCM24AP120M320A50

Active

Vicor Corporation

DC DC CONVERTER 12V 320W

Search across all available documentation for this part.

Active

Vicor Corporation

DC DC CONVERTER 12V 320W

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Input (Min) [Min]	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Features	Applications	Voltage - Isolation	Mounting Type	Power (Watts)	Type	Number of Outputs	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Efficiency
Vicor Corporation DCM24AP120M320A50	-55 °C	125 °C	9-DIP Module	18 V	12 V	7.3 mm	1.52 in	22.8 mm	0.29 "	38.7 mm	0.9 "	OCP OTP OVP SCP UVLO	ITE (Commercial)	2250 VDC	Through Hole	320 W	Isolated Module	1	26.67 A	36 V
Vicor Corporation DCM24AP480T320A50	-40 °C	125 °C	9-DIP Module	18 V	48 V	7.3 mm	1.52 in	22.8 mm	0.29 "	38.7 mm	0.9 "	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	2250 VDC	Through Hole	320 W	Isolated Module	1	6.67 A	36 V	92.5 %
Vicor Corporation DCM24AP050T180A50	-40 °C	125 °C	9-DIP Module	18 V	5 V	7.3 mm	1.52 in	22.8 mm	0.29 "	38.7 mm	0.9 "	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	2250 VDC	Through Hole	180 W	Isolated Module	1	36 A	36 V	91.9 %
Vicor Corporation DCM24AP150T320A50	-40 °C	125 °C	9-DIP Module	18 V	15 V	7.3 mm	1.52 in	22.8 mm	0.29 "	38.7 mm	0.9 "	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	2250 VDC	Through Hole	320 W	Isolated Module	1	21.4 A	36 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 12V 26.67A 18V - 36V Input
