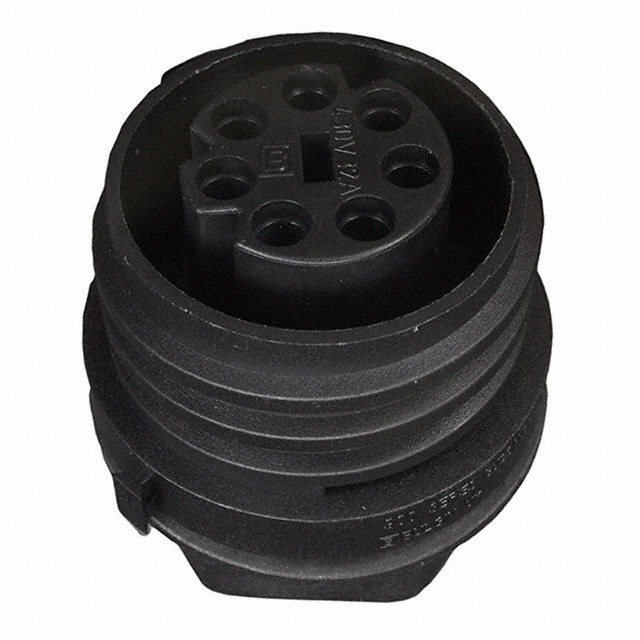

PX0931/07/S
ActiveBULGIN LIMITED
MAINS POWER CONNECTOR, 32A, 600VAC/DC, FEMALE, SCREW TERMINAL, SOCKET, ROHS COMPLIANT
Deep-Dive with AI
Search across all available documentation for this part.
PX0931/07/S
ActiveBULGIN LIMITED
MAINS POWER CONNECTOR, 32A, 600VAC/DC, FEMALE, SCREW TERMINAL, SOCKET, ROHS COMPLIANT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PX0931/07/S |
|---|---|
| Cable Opening [Max] [diameter] | 13 mm |
| Cable Opening [Max] [diameter] | 0.512 in |
| Cable Opening [Min] [diameter] | 0.276 in |
| Cable Opening [Min] [diameter] | 7 mm |
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Nickel |
| Contact Material | Brass |
| Current Rating (Amps) | 32 A |
| Features | UV Resistant |
| Ingress Protection | IP68, IP69K |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead |
| Number of Positions | 7 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 430 VAC/DC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 62.33 | |
| 20 | $ 57.19 | |||
| 40 | $ 53.16 | |||
| 100 | $ 50.23 | |||
Description
General part information
PX0931 Series
7 (6 Power + PE) Position Circular Connector Receptacle, Female Sockets Screw
